Name: Cat 3516 Generator 1250 kW - 2000 kW Marine Diesel Generator For CAT Diesel Generator Set
Brand: Guangzhou Lanxin Machinery Equipment Co., Ltd
SKU: 3516
Price: 17,715.00 USD
Availability: InStock

Home > Products > Diesel Generating Set >

Cat 3516 Generator 1250 kW - 2000 kW Marine Diesel Generator For CAT Diesel Generator Set

Cat 3516 Generator

1250 kW Marine Diesel Generator

2000 kW Marine Diesel Generator

Place of Origin:

China

Brand Name:

CAT

Model Number:

3516

Chat Now

Request A Quote

Product Details

Product Name:

Cat 3516 Generator

Engine Model:

3516

Configuration:

V16, 4-stroke, Direct Injection

Aspiration:

Industrial Prime Power / Marine Auxiliary Power

Prime Power Rating:

1250–2000 KW / 1563–2500 KVA

Voltage:

400V/480V 3-phase (customizable)

Cooling System:

Liquid-cooled With Radiator And Industrial Fan

Voltage Regulation:

±1% (AVR Controlled)

Alternator Type:

Brushless, Self-exciting Synchronous

Efficiency:

≥95% At Full Load

Payment:

TT.Money Gram.Western Union. Paypal

Highlight:

Cat 3516 Generator

1250 kW Marine Diesel Generator

2000 kW Marine Diesel Generator

Payment & Shipping Terms

Minimum Order Quantity

Price

$15450 - $19980

Packaging Details

Wooden Box

Delivery Time

3-7 work days

Payment Terms

L/C,D/A,D/P,T/T

Supply Ability

1620kW / 2172 HP Diesel Generating Set S16R-PTA Compatible With Mitsubishi

Chat Now

3156 Diesel Engine Generator Set Marine / Industrial Cat Diesel Generator

Chat Now

250kW - 320kW Diesel Generating Set Cat C13 Generator For Industrial Machinery

Chat Now

3412C Generator Set 500kW - 720kW Industrial DG Set For CAT 3412C Industrial Mining Construction

Chat Now

+8618688416585

Sales02@lanxinmachinery.com

86--18688416585

Chat Now

Product Description

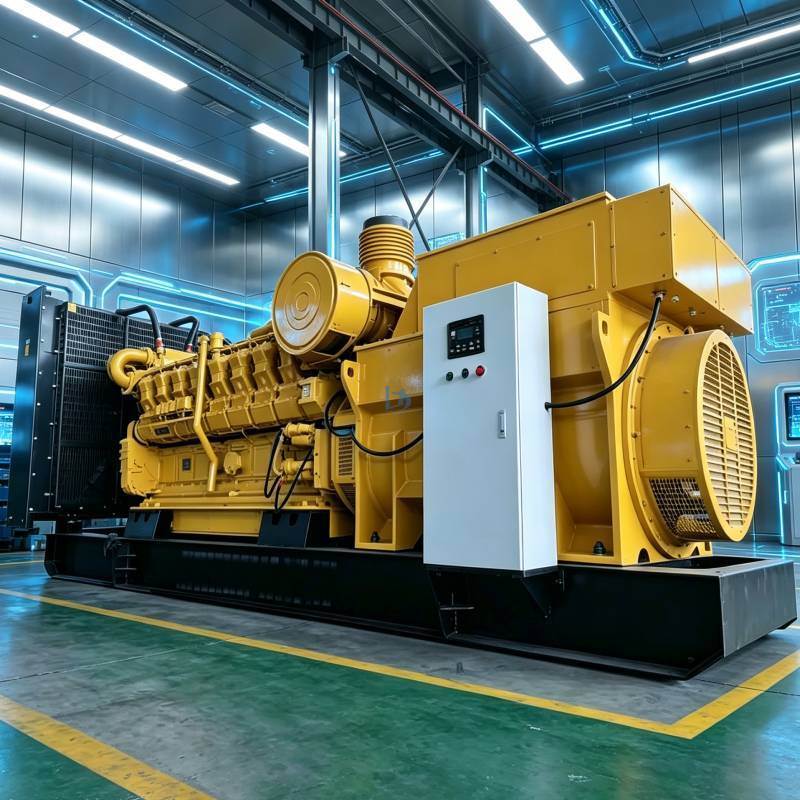

3516 Marine Generator Diesel Engine Assembly for CAT Diesel Generator Set

The CAT 3516 heavy-duty diesel generator set is the industry benchmark for reliable high-power generation, engineered for both industrial prime power and marine auxiliary applications. Powered by the legendary CAT 3516 V16 diesel engine, this complete assembly delivers 1250–2000 kW of continuous power with exceptional fuel efficiency and durability. Built to withstand 24/7 operation in the harshest environments—from remote mining sites to offshore vessels—it provides uninterrupted power for critical operations where downtime is not an option. Every unit undergoes comprehensive load testing before shipment to ensure plug-and-play performance.

Core Selling Points

✅ Legendary CAT 3516 Engine Reliability

Proven in millions of operating hours worldwide, the 3516 engine delivers unmatched durability and low maintenance costs. Its robust cast iron construction and heavy-duty internal components ensure long service life even under continuous full-load conditions.

✅ Dual Industrial & Marine Compatibility

Certified for both land-based industrial use and marine auxiliary power applications. It meets international marine classification standards, making it ideal for cargo ships, offshore platforms, and workboats.

✅ Complete Ready-to-Install Assembly

Comes fully integrated with the engine, alternator, cooling system, digital control panel, and base frame. No additional component sourcing is required, enabling fast installation and minimal commissioning time.

✅ Advanced Monitoring & Protection

Equipped with a comprehensive digital control system that provides real-time performance monitoring, fault diagnostics, and automatic protection against overload, overheating, and low oil pressure.

Category	Parameter	Specification
General Information	Generator Model	CAT 3516 Industrial/Marine Diesel Generator Set
	Prime Power Range	1250–2000 kW / 1563–2500 kVA
	Standby Power	1375–2200 kW
	Frequency	50Hz @ 1500 RPM / 60Hz @ 1800 RPM
	Voltage	400V/480V 3-phase (customizable)
	Application	Industrial prime power / Marine auxiliary power
	Condition	New/reconditioned, 100% load tested
Engine Specifications	Engine Model	CAT 3516 V16 Diesel Engine
	Configuration	V16, 4-stroke, direct injection
	Displacement	78.1 L
	Bore × Stroke	170 mm × 215 mm
	Aspiration	Twin turbocharged & aftercooled
	Compression Ratio	14.5:1
	Fuel Consumption	~198 g/kWh @ 75% prime load
	Fuel Type	Diesel (ASTM No. 2 / EN 590)
Control & Mechanical	Control System	CAT EMCP 4.2 digital controller
	Cooling System	Liquid-cooled with heavy-duty radiator
	Starting System	24V dual electric starters
	Dry Weight	12,000–15,000 kg
	Dimensions (L×W×H)	~5200 × 2200 × 2800 mm

Part Number	Part Type	Description & Compatibility
3516	Base Engine Model	Official CAT base model designation for the 78L V16 diesel engine platform
3516B	Industrial Engine Model	Most common industrial version, 1600-2000kW prime power
3516C	Updated Industrial Model	Tier 2/Stage II emission compliant version, fully interchangeable core components
345-3800	Complete Industrial Engine Assembly	Factory-original 3516B engine assembly for 2000kVA gensets
345-3801	Service Replacement Engine	Updated service replacement engine assembly
345-3800R	Remanufactured Industrial Engine	Factory-remanufactured engine with full OEM warranty
247-1234	Complete Marine Engine Assembly	Factory-original 3516B marine engine assembly
247-1235	Marine Service Replacement Engine	Marine-certified service replacement engine
