Place of Origin:
China
Brand Name:
Kobelco
Model Number:
YN22E00071F3

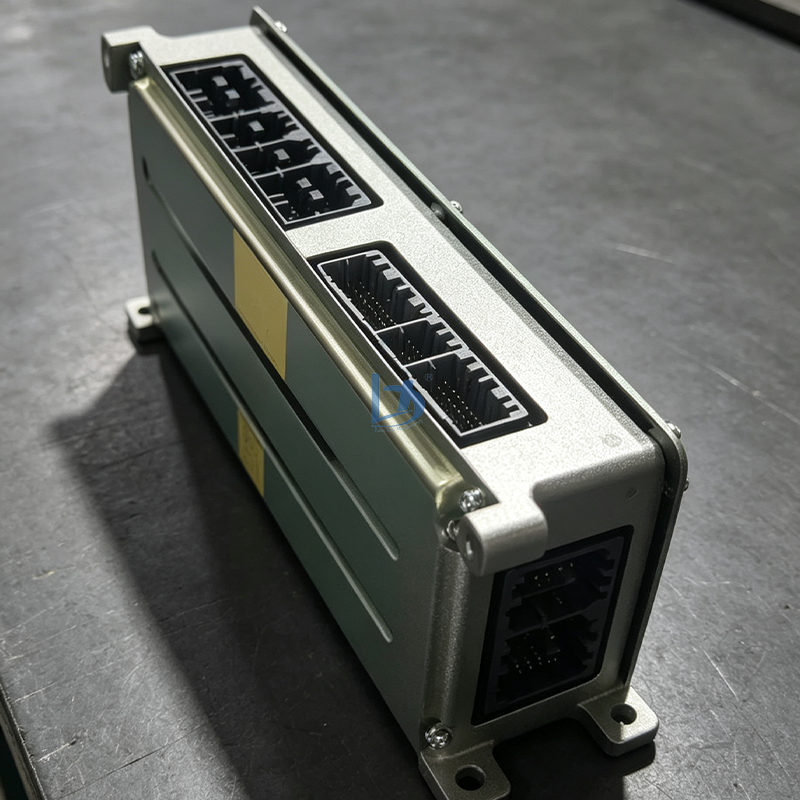

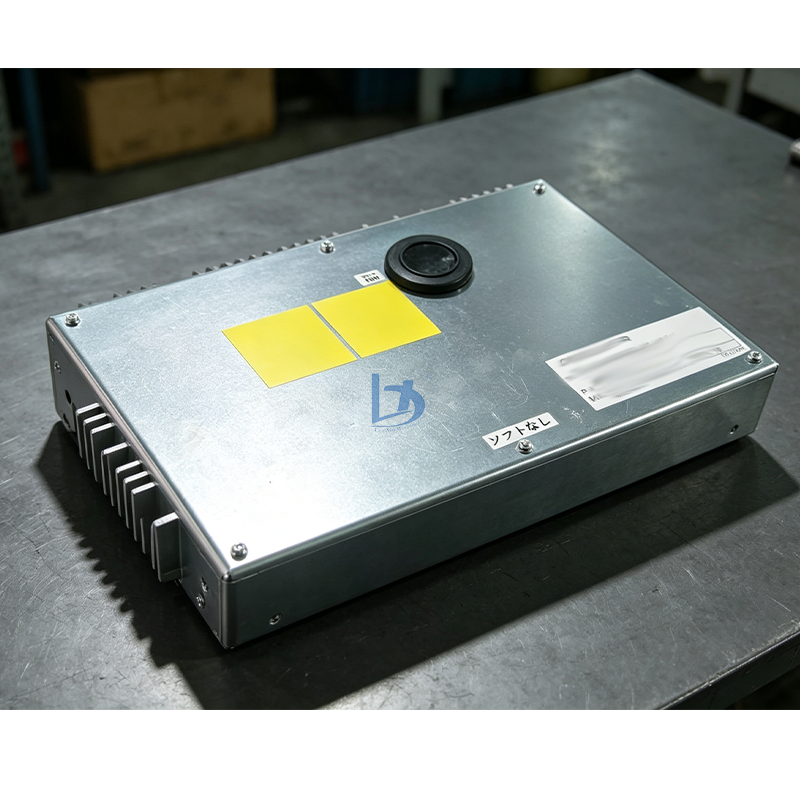

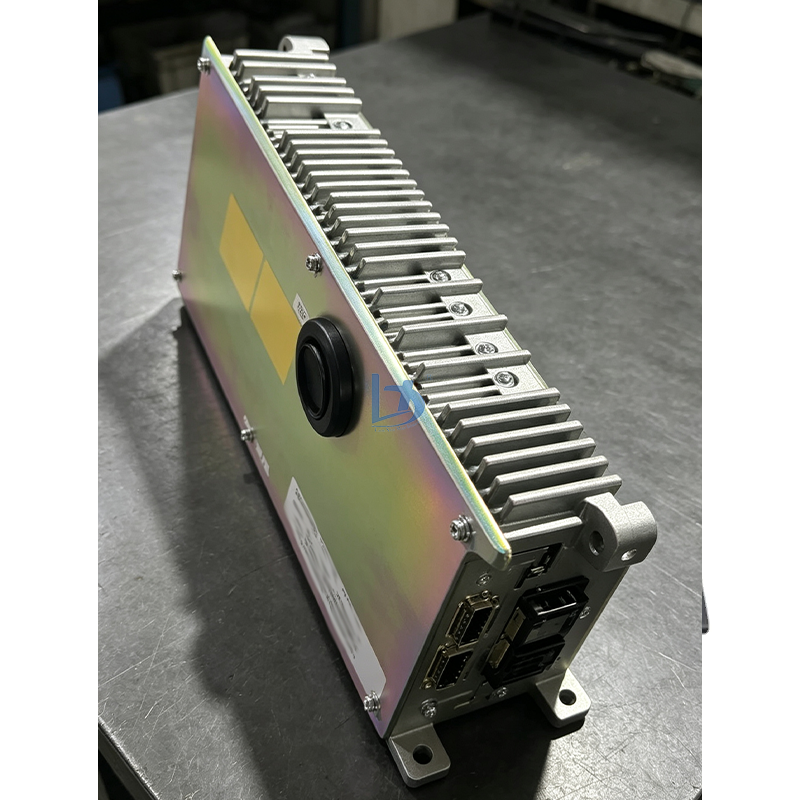

OEM engine controller / ECU computer board part number YN22E00071F3 for Kobelco -6 series excavators. This programmed engine control unit ensures optimal performance for SK200-6, SK210-6, SK210LC-6 and SK230-6 models.
| Item | Specification |
|---|---|
| Product Name | Excavator ECU / Engine Controller Computer Board |
| Part Number | YN22E00071F3 (OEM); also circulates as YN22E00071F1 |
| Module Type | Engine controller / electronic control unit (V-ECU, PVC, CPU) |
| Function | Engine and pump control logic, fuel control, hydraulic pump output matching, machine diagnostics |
| Application | Kobelco SK200-6, SK210-6, SK210LC-6, SK230-6 |
| Condition | New |
| Warranty | 12 Months |
| Packaging | Anti-static bag + export carton packaging |
| Category | Details |
|---|---|
| OEM Part Numbers | YN22E00071F3; adjacent revision YN22E00071F1 |
| Related -6 Series Numbers | YN22E00037F2, YN22E00037F6, YN22E00055F6, YN22E00055F7, YN22E00069F2/F4/F6/F7, YN22E00087F3, YN22E00108F1, YN22E00149F3 |
| -6E Generation Numbers | YN22E00123F1/F2/F3/F4/F5, LQ22E00048F2, YN22E00146F1/F2 |
| Compatible Models | SK200-6, SK210-6, SK210LC-6, SK230-6 |
| Related Components | Monitor Panel, Wiring Harness, Throttle Motor, Solenoid Valves, Pressure and Speed Sensors, Main Hydraulic Pump Controller |
This engine controller ties engine output to hydraulic pump demand on Kobelco -6 series excavators. Failure symptoms include sluggish hydraulics, no pump response, or persistent error codes.
It is the OEM engine controller / ECU computer board number for the Kobelco -6 series excavator deck. Depending on the supplier, it may be described as a V-ECU, PVC or CPU - the part number is the reliable identifier.
YN22E00071F3 is the OEM number - the original part number the machine was built with. We supply this module new against that number. For genuine-factory-boxed units or used take-offs, please specify during enquiry.
SK200-6, SK210-6, SK210LC-6 and SK230-6. Controller fitment follows the machine build specifications, so always confirm with the machine serial number.
No. Machines badged SK200-6E and SK210-6E use the YN22E00123F1/F2/F3/F4/F5 controller family and LQ22E00048F2 / YN22E00146F1/F2 boards. Provide your machine badge and serial number for correct matching.
Engine starts but hydraulics do not respond or respond sluggishly, pump output not matching demand, no throttle response, unstable operation with temperature, and error codes that will not clear. Confirm the fault before replacing the controller as harness, throttle motor and sensor faults present similarly.
Send photos of the original controller label (both sides with full number legible) plus the machine model, serial number and machine badge photo. We match the number, confirm programming, inspect the board, and ship in anti-static protection inside an export carton.
