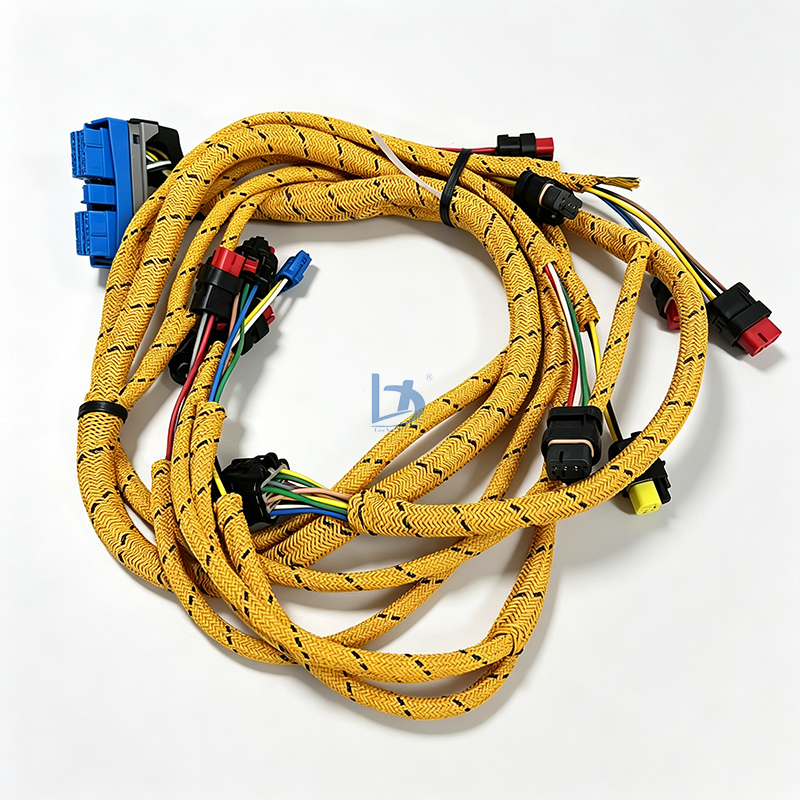

C6.4 Engine Wiring Harness 296-4617 for CAT 320D Excavator

Engine wiring harness 296-4617 / 520-7000 for the CAT C6.4 and 3066 engine in 320D, 320D GC, 320D FM, 320DL, 321D LCR and 323D excavators. Plug-in replacement using OEM-style connectors with no cutting or splicing required.

A harness is the part that gets replaced last, and it is often the one that was at fault first. On a 320D the engine harness carries the sensor and injector circuits, so when it chafes through or a connector corrodes, the fault presents as something else entirely - a sensor reading that drifts, an intermittent no-start, a code that clears and returns. Owners replace the sensor, then the ECM, and only reach the harness after both. Because the failure is electrical rather than mechanical, condition on arrival matters more here than on any hard part, which is why we state the connector type and confirm the machine from the serial rather than the model badge. The other thing worth knowing is that this harness travels under two numbers: 296-4617 and 520-7000 / CA5207000, with some suppliers also grouping 549-9283 and the C6.6 harness numbers in the same listing. We confirm the engine model with you before release, supply genuine and aftermarket grades so you can price the job at the level the machine warrants, and ship every unit bagged with all connectors capped.
