Place of Origin:
China
Brand Name:
Ford
Model Number:
GTB1749VK

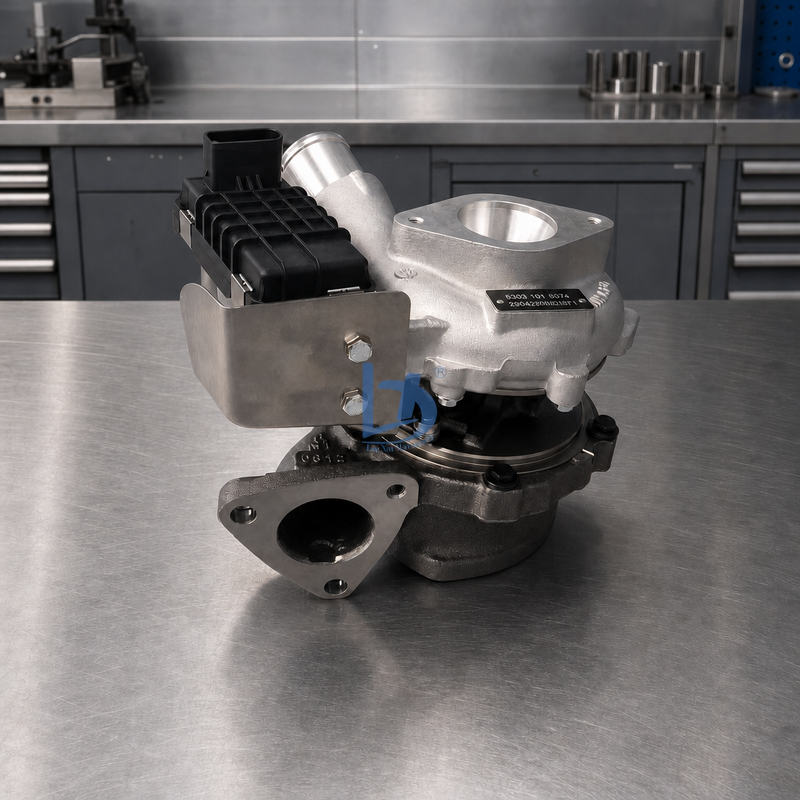

Variable nozzle turbocharger assembly for the 2.2 litre Duratorq TDCi engine family used across Ford Transit, Ford Tourneo, Ford Ranger and Mazda BT-50 applications. This unit is supplied in two distinct release blocks — 786880 and 787556 — with a separate rear-driven and front-driven housing casting. Identification must be made from the figure stamped on the original compressor housing, not from the vehicle registration or engine badge alone.
| Product Name | Turbocharger Assembly |
|---|---|
| Charger Frame | GTB1749VK, variable nozzle with an electronic module |
| First Release Block | 786880, in suffixes ending 0006, 5006, 5019 and 5021 |
| Second Release Block | 787556, in suffixes ending 0017, 5016 and 5017 |
| Additional Figure | 854800-5001S appears alongside the second block |
| Vehicle Side Figures | BK2Q-6K682-GA, -CA, -HA, -AH and BK3Q-6K682-PC, -CB, -AB |
| Engine | 2.2 litre four cylinder turbo diesel, Euro 5 emissions step |
| Output Range | 74, 92, 103, 114 and 144 kilowatt builds |
| Centre Section | GT17-060 cartridge |
| Cooling | Oil cooled bearing housing, journal bearing |
| Packing | Foam lined carton, ports capped, module bracketed |
| Two Blocks, Not One | The earlier block is quoted against one family of vehicle side figures and the later block against another. A seller working from memory will mix the two because both start with the same frame letters. |
|---|---|
| Rear Driven Against Front Driven | The panel van body and the passenger carrying body are driven from different ends, and their chargers differ in the housing casting rather than in the core. |
| Output Rather Than Badge | Two vans with the same engine capacity can leave the factory several ratings apart, and the compressor trim follows the rating. |
| A Letter That Changes Everything | The fixed geometry form of this frame is sold under a name one letter shorter, and listings that quote both in a single line are describing two different articles. |
| A Second Trade Name | Some catalogues index this unit under an alphanumeric trade name that shares no characters with the frame code, so a search on the frame alone will miss those offers. |
| Module Priced Apart | The electronic module on the housing is included by some sellers and excluded by others, which is why two quotations for the same frame can differ by a third. |
| Related Components | Cartridge, electronic module, nozzle ring, gasket and stud kit, oil feed pipe, drain pipe, air inlet hose, breather filter. |
The one stamped on the old compressor housing cover.
Because one is driven from the rear axle and the other from the front.
Only where the quotation says so.
Some builds share it, and the housing figure decides.
Yes, the vane position must be taught after fitting.
Only if it tested good before removal.
