K19 Diesel Engine Assembly for Excavator Mining Marine Generator Industrial Machinery

K19 diesel engine assembly

excavator diesel engine

marine generator engine

Place of Origin:

China

Brand Name:

Cum-mins

Model Number:

K19

Chat Now

Request A Quote

Product Details

Product Name:

Construction Engine

Size:

A Standard Size

Model:

K19

Condition:

New

Delivery:

7-14 Working Days

Payment::

T/T, Western Union, MoneyGram

Application::

Excavator Spare Parts

Highlight:

K19 diesel engine assembly

excavator diesel engine

marine generator engine

Payment & Shipping Terms

Minimum Order Quantity

Price

$6800 - $6400

Packaging Details

Wooden Box

Delivery Time

7-14 work days

Payment Terms

T/T,D/P,D/A,L/C

Supply Ability

999

0445110307 Common Rail Fuel Injector for Komatsu PC60-8 PC120-8 4D95 Diesel Engine

Chat Now

C7.1 Engine Assembly 6236651 for Caterpillar Excavator Complete Diesel Engine Replacement

Chat Now

video

404D-22T Construction Engine 44.7 kW Cat C2.2 Diesel Engine C8Y04537

Chat Now

PC2000-8 Engine Assembly Complete Diesel Engine for Mining Excavator

Chat Now

+8618688416585

Sales02@lanxinmachinery.com

86--18688416585

Chat Now

Product Description

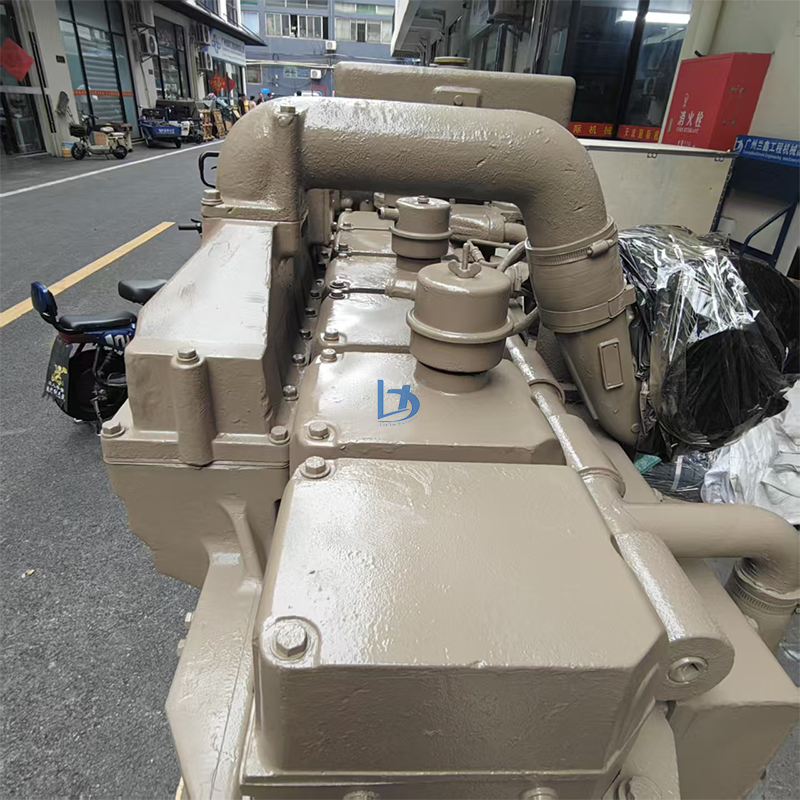

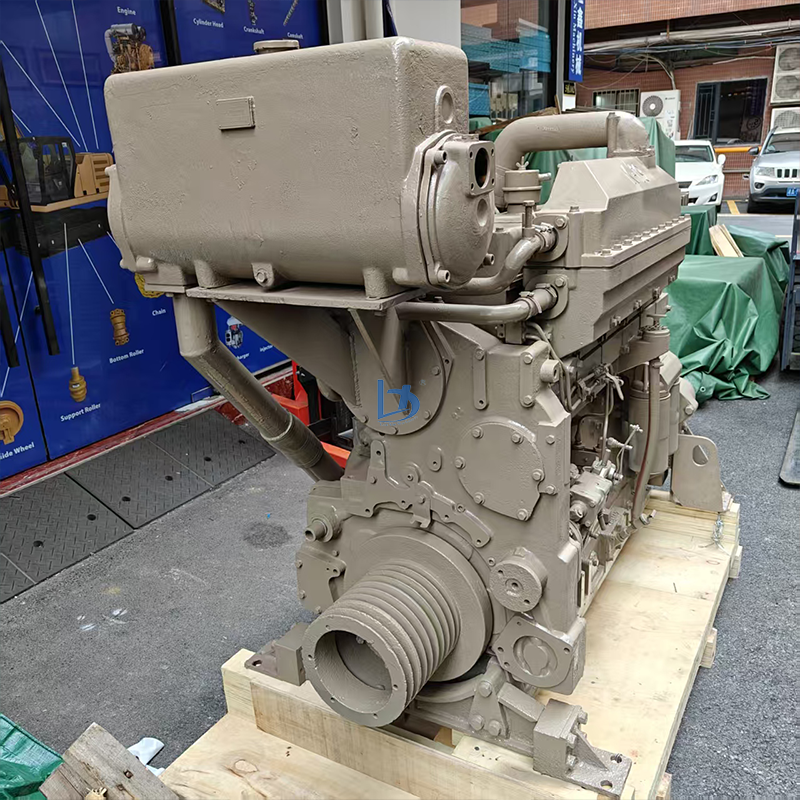

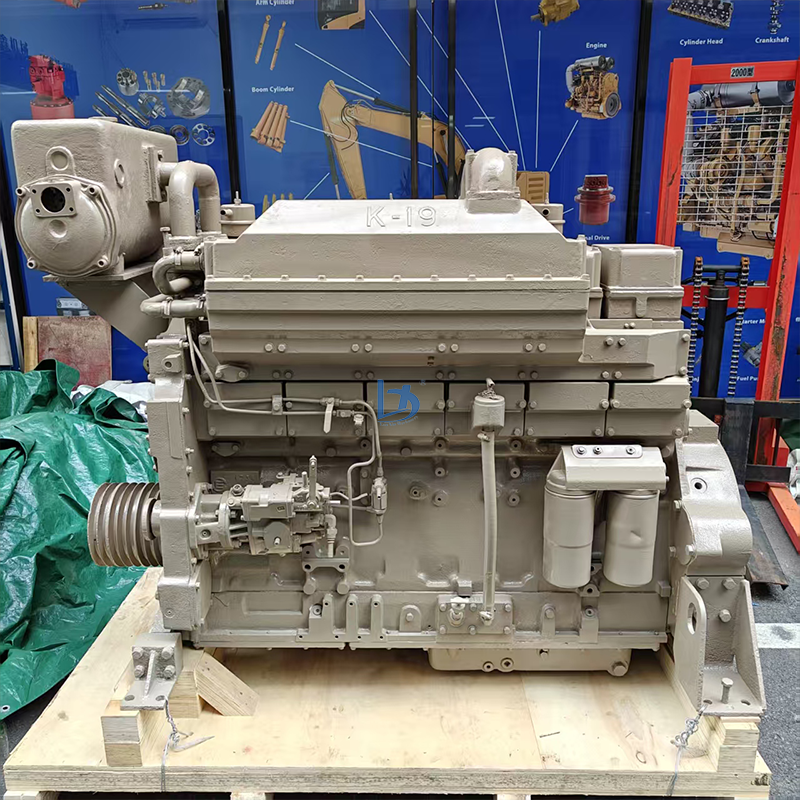

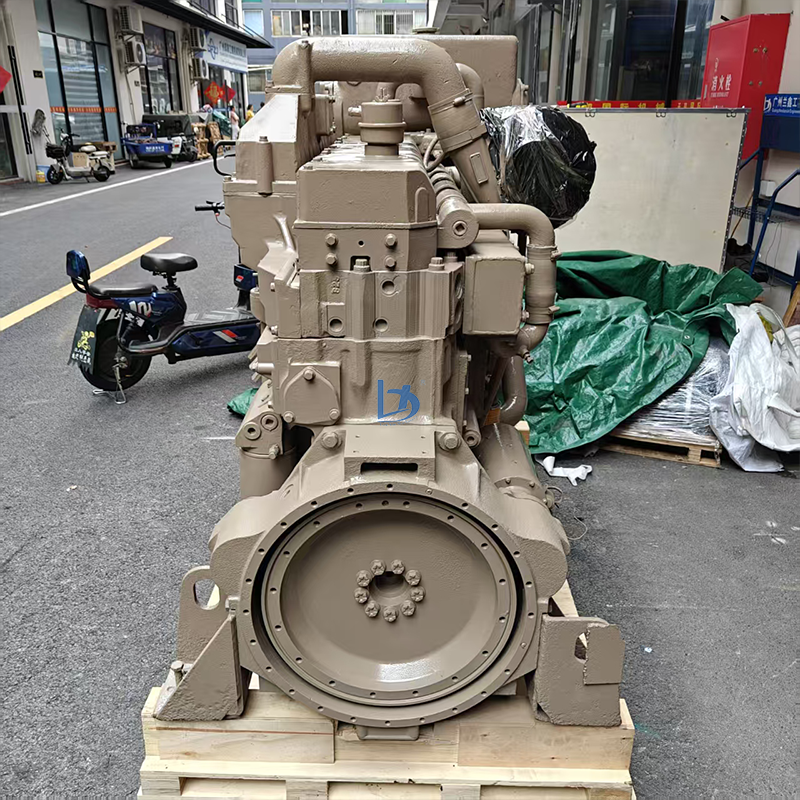

K19 Diesel Engine Assembly

High-performance 6-cylinder diesel engine assembly designed for excavators, mining equipment, marine applications, generators, and industrial machinery.

Engine Overview

K19 engine KTA19 QSK19 6 cylinder diesel engine 19L turbocharged aftercooled heavy duty mining haul truck excavator marine generator set industrial diesel motor replacement.

Key Features

High strength alloy cast iron cylinder block with wet replaceable liners for excellent heat dissipation and easy maintenance
PT fuel system or common rail injection for high pressure precise injection, full combustion, and low fuel consumption
Holset turbocharger with air-to-air aftercooling for sufficient intake air and high power output
4 valves per cylinder with optimized combustion chamber design to improve fuel efficiency and reduce emissions
Forged steel crankshaft and connecting rods with strong structure to withstand heavy load and continuous operation
Compact structure with high power-to-weight ratio for easy installation in limited space

Technical Specifications

Item	Parameter Details
Main Engine Model	K19 KTA19 QSK19
Engine Structure	Inline 6 Cylinder 4 Stroke Vertical Water Cooled Diesel
Total Displacement	19L (1150 cu in)
Bore × Stroke	159mm × 159mm Compression Ratio:13.5:1~15.5:1
Rated Power/Speed	450-700HP (336-522kW) @ 1500/1800/2100RPM
Max Torque	1906-2729N*m @ 1500RPM
Intake Mode	Turbocharged & Aftercooled
Fuel System	PT Fuel System / Common Rail (QSK19)
Electric System	24V Starting Motor and Matching Alternator
Emission Standard	IMO Tier II EU Stage II EPA Tier 2
Net Dry Weight	1838KG
Overall Dimension	2010×1067×1143MM
Cross Reference Engine Code	KTA19-C525 KTA19-M550 KTA19-G4 QSK19
Available Product Type	New OEM Original Aftermarket New Rebuilt Machined Unit
FOB Price Range	$8500~$28000 based on product quality grade

Compatible Applications

Applicable Machine Model	Compatible Engine Model	Alternative Part Number
Mining Haul Truck Excavator	KTA19-C525 K19-C600	3804669 4915305 3044516
Marine Main Engine Propulsion	KTA19-M550 QSK19-M	3804709 4915306 3044517
350-500KVA Diesel Generator Set	KTA19-G3 KTA19-G4	3804670 4915307 3044518
Wheel Loader Bulldozer Heavy Equipment	K19 Industrial Spec	3804671 4915308 3044519
Oil Gas Drilling Rig Compressor	KTA19-P600	3804672 4915309 3044520

Application Details

Original and rebuilt K19 full engine assembly 19L inline six-cylinder turbocharged aftercooled diesel unit widely used for mining haul trucks, excavators, marine vessels, generator sets and heavy industrial equipment with reliable performance and easy maintenance.

Frequently Asked Questions

What is the difference between KTA19 and QSK19?

KTA19 uses PT fuel system with mechanical or electronic control, while QSK19 adopts common rail fuel system with electronic control for higher power and better emission performance.

What is the life expectancy of K19 engine?

With proper maintenance, K19 engine can reach 20,000+ hours service life.

Is K19 engine suitable for marine use?

Yes, K19-M series is specially designed for marine applications and complies with IMO emission standards.
