Place of Origin:
China
Brand Name:
Perkins
Model Number:
403D-11
| Item | Specification |
|---|---|

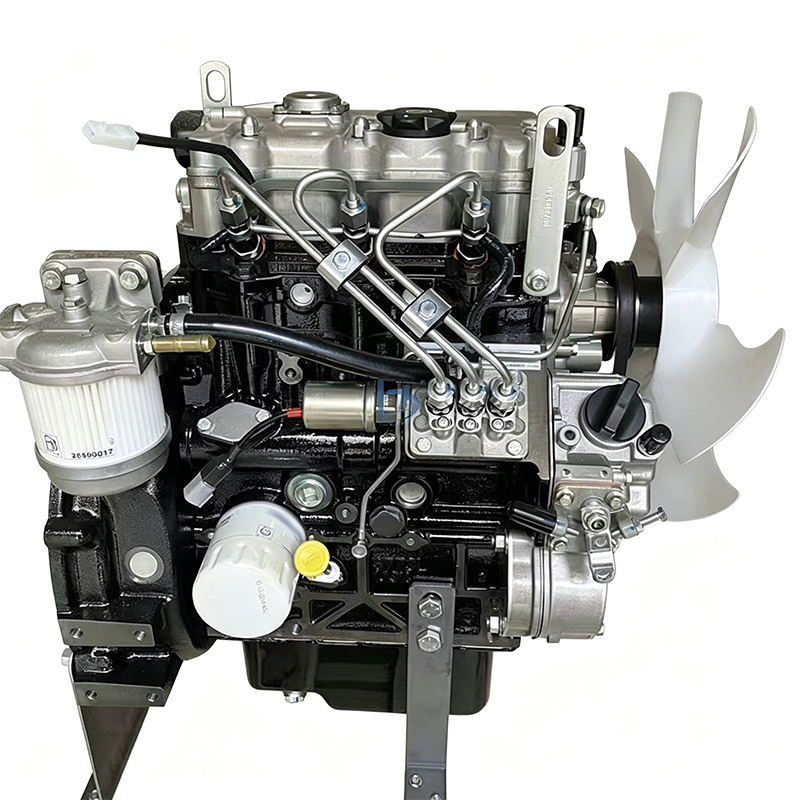

| Product Name | Complete Engine Assembly (Diesel) |
| Engine Model | Perkins 403D-11 (400 Series) |
| Configuration | 3-cylinder, in-line, water-cooled, four-stroke |
| Displacement | 1.1 L / 1.13 L |
| Bore | 77 mm |
| Dry Weight | Approximately 87 kg |
| Rated Output Range | 14.7 kW at 2200 rpm; 17.3 kW; 18.4 kW at 2800 rpm; 19.7 kW at 3000 rpm; 21.0 kW (28.2 hp) at 3400 rpm |
| Generator Variant | 403D-11G (ElectropaK) |
| Supply Options | New, original and used-original grades supplied - state which you need |
| Condition | New / Original / Used Original |
| Warranty | 12 Months (grade dependent) |
| Packaging | Ports capped and plugged, braced on timber pallet, sealed for sea freight |
| Category | Replaceable Part Numbers & Compatible Models |
|---|---|
| Engine Models | 403D-11; 403D-11G (generator / ElectropaK build) |
| Engine Family | Perkins 400 Series - 403D-07; 403C-11; 403D-11; 403D-15; 404C-22; 404D-22; 404D-22T; 1104D |
| Configuration Split | 403D-11 - 1.1 L, 3-cylinder; the 404 series is 4-cylinder and does not interchange |
| Compatible Machines | JCB 8014 Mini (403D-11 Tier III); JCB 8018 CTS Mini Excavator; JCB 8020 CTS; CAT 301.7CR mini excavator; CAT 301.5 / 301.6 / 301.8 range |
| Other Applications | Skid steer loaders, mini excavators, wheel loaders, welders and lift equipment (as stated by Perkins for the 403D-11) |
| Caution - Ratings Differ | The same 403D-11 model is built in several ratings, from 14.7 kW at 2200 rpm through 17.3 kW, 18.4 kW at 2800 rpm and 19.7 kW at 3000 rpm to 21.0 kW at 3400 rpm - the injection pump setting and governor differ, so state the rating and the machine |
| Caution - Neighbouring Models | 403D-15 (used in ASV RT30 and Terex R070T posi-track loaders at 32.7 hp) and 404D-22 are different engines with different cylinder counts - the engine plate decides, not the family name |

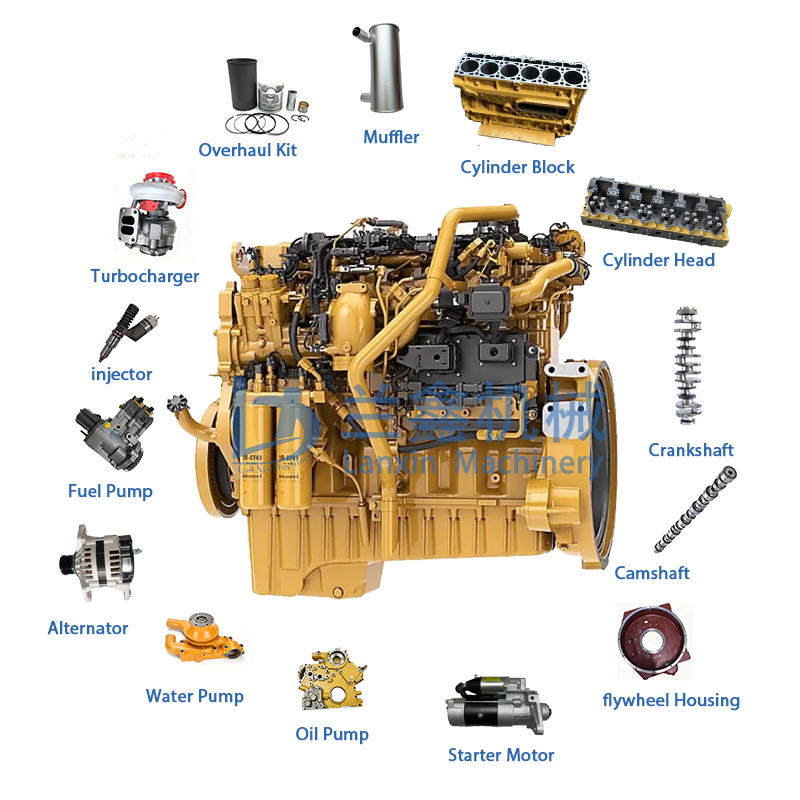

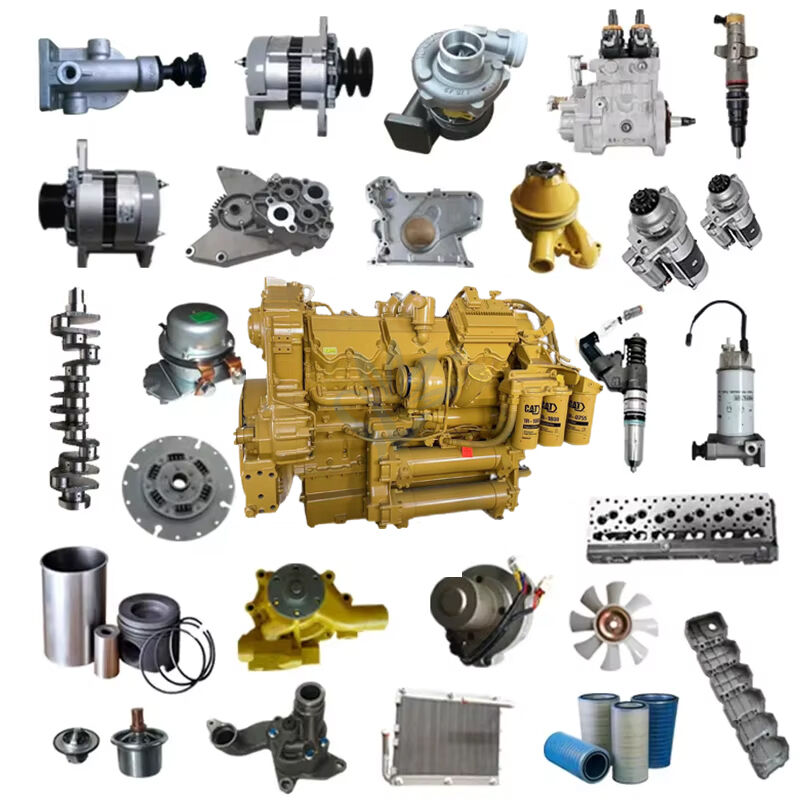

| Related Components | Cylinder Head; Crankshaft; Cylinder Liner and Piston Kits; Overhaul and Gasket Kits; Injection Pump; Injectors; Water Pump; Starter and Alternator; Fuel Lift Pump |
