V3800-T Diesel Engine Assembly V3800 Engine for Kubota Mini Excavator

V3800-T Diesel Engine Assembly V3800 Engine for Kubota Mini Excavator

V3800-T Diesel Engine Assembly

Kubota Mini Excavator Engine

V3800 Engine for Construction

Place of Origin:

China

Brand Name:

Kubota

Model Number:

V3800-T

Chat Now
Request A Quote
V3800-T Diesel Engine Assembly V3800 Engine for Kubota Mini Excavator
V3800-T Diesel Engine Assembly V3800 Engine for Kubota Mini Excavator
Product Details
Product Name:
Kubota V3800T Engine
Size:
A Standard Size
Quality:
High-Quality
Model:
V3800 V3600 V2607 V2403 V2203 V2200 D1105 D1105 D782
Cooling System:
Water-cooled
Shipment:
DHL FEDEX TNT EMS
Condition:
New
Fuelinjection:
Direct Injection
Delivery:
3-7 Working Days
Highlight:

V3800-T Diesel Engine Assembly

,

Kubota Mini Excavator Engine

,

V3800 Engine for Construction

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$3600 - $4500
Packaging Details
Wooden Box
Delivery Time
3-7 work days
Payment Terms
T/T,D/P,D/A,L/C
Supply Ability
99
RELATED PRODUCTS
Good price 6D125-2 Complete Engine Assembly S6D125E-2 11.04L for Komatsu PC400-6 PC450-6 Excavator online video

6D125-2 Complete Engine Assembly S6D125E-2 11.04L for Komatsu PC400-6 PC450-6 Excavator

Chat Now
Good price PC300-8M0 PC360-8M0 Engine Assembly SAA6D114E-3 6D114-3 Engine for Komatsu Excavator online video

PC300-8M0 PC360-8M0 Engine Assembly SAA6D114E-3 6D114-3 Engine for Komatsu Excavator

Chat Now
Good price 250HP – 400HP Excavator Diesel Engine Cum-mins Engine QSM11 For Excavator Truck online video

250HP – 400HP Excavator Diesel Engine Cum-mins Engine QSM11 For Excavator Truck

Chat Now
Good price 403D-11 Complete Engine Assembly for Perkins Excavator online video

403D-11 Complete Engine Assembly for Perkins Excavator

Chat Now
CONTACT US
86--18688416585
Sales02@lanxinmachinery.com
86--18688416585
Chat Now
Product Description
V3800-T Diesel Engine Assembly for Kubota Mini Excavator
Complete V3800-T diesel engine assembly designed for Kubota KX080 series mini excavators. This Kubota V3 series engine features 4 cylinders, 3.769L displacement, and turbocharged performance.
Key Features
  • Complete V3800-T diesel engine assembly for Kubota KX080 series mini excavators
  • Kubota V3 series, 4 cylinder, vertical water-cooled 4-cycle diesel
  • Bore and stroke 100.0 x 120.0 mm, displacement 3.769 L (230.0 cu in)
  • Turbocharged; supplied in mechanical direct injection (V3800-DI-T) or common rail electronic injection (V3800-CR-T) form
  • Fitted to Kubota KX080-3 and KX080-4, SVL90-2 skid steer and M series tractors
  • Build code, injection type and power rating confirmed before dispatch

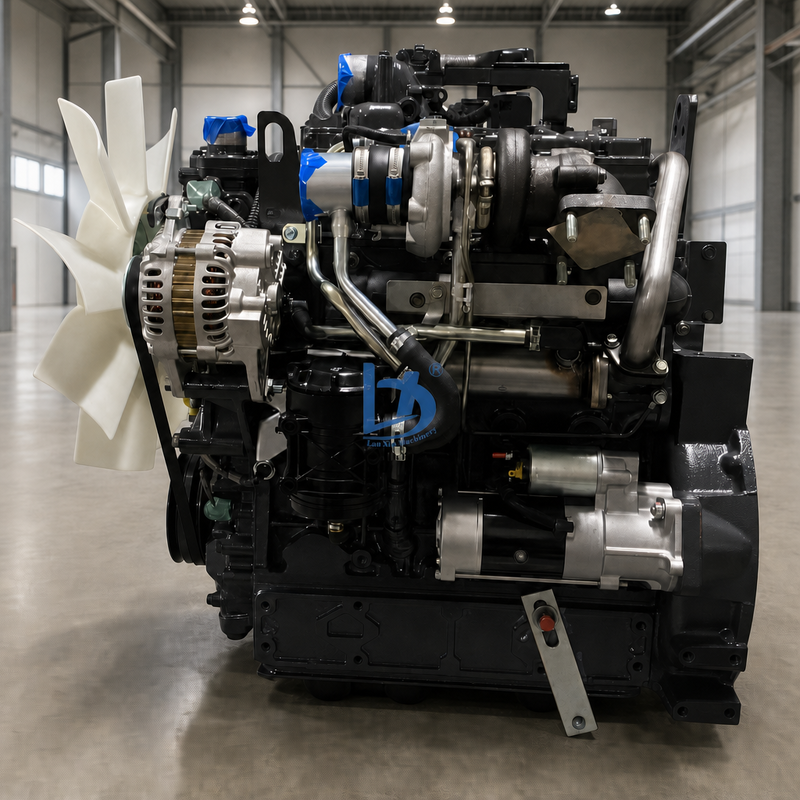

Kubota V3800-T diesel engine assembly front view Kubota V3800-T engine side view showing components V3800-T engine top view with detailed labeling Kubota V3800 engine installation in excavator V3800-T engine close-up showing turbocharger
Technical Specifications
Item Specification
Product Name Complete Diesel Engine Assembly
Kubota Engine Model V3800-T. Supplied as V3800-DI-T (mechanical direct injection) or V3800-CR-T (common rail electronic injection)
Series and Cylinders Kubota V3 series; 4 cylinders. In Kubota's model numbering the first letter states the cylinder count, and V designates four cylinders
Engine Type Vertical, water-cooled, 4-cycle diesel
Bore and Stroke 100.0 x 120.0 mm (3.937 x 4.724 in)
Displacement 3.769 L (230.0 cu in)
Aspiration Turbocharged (T). The V3800-T designation covers turbocharged builds only
Fuel System DI = mechanical direct injection; CR = common rail electronic injection. This is the single most important identifier on this engine
Rated Output Depends on build. Ratings seen across V3800-T builds run from 55.4 kW at 2200 rpm to 86.4 kW at 2600 rpm. The power rating is confirmed against your build code before dispatch
Emission Level Depends on build code. CR-T-E4B units meet EPA Tier 4 / EU Stage IIIB; TIEF4 units meet EPA/CARB Tier 4 Final and EU Stage IV
Machine Models Kubota KX080-3; KX080-4; Kubota SVL90-2 / SVL90-2C skid steer; Kubota M series tractors. Market listings also quote S300, T300 and T320 skid steer loaders
Condition New; remanufactured and genuine used units are quoted as their own tier
Warranty 12 Months on new and remanufactured units; used units sold as inspected
Verification Engine plate photograph and machine serial number required before dispatch
Packaging Drained, openings plugged, timber pallet, braced and sealed for sea freight
Cross Compatibility Reference
Category Replaceable Part Numbers & Compatible Models
Base Model V3800-T; also written V3800T and V3800
Build Codes in Circulation Mechanical: V3800-DI-T-E2B; DI-T-E3B; DI-T-ET05; DI-T-ET09; DI-T-ET18; DI-T-ES01; DI-T-ES09e; DI-T-E2B-CCH2-1 - Electronic: V3800-CR-T; CR-T-EF09; CR-T-E4B; CR-TI-CF13; CR-TI-E4B; V3800CR; V3800CCR-TI-CF11; V3800-TIEF4
Compatible Machines Kubota KX080-3 and KX080-4 mini excavators; Kubota SVL90-2 / SVL90-2C skid steer loaders; Kubota M series tractors; market listings also quote S300, T300, T320
Important Compatibility Notes
DI and CR Are Different Engines: DI is mechanical direct injection; CR is common rail electronic injection. The KX080-3 ran the V3800-DI-T and the KX080-4 moved to the V3800-CR-TE4 common rail unit. Mechanically injected and common rail units are not interchangeable.
One Name, Many Power Ratings: Builds sold under the V3800-T name are quoted at various power outputs from 55.4 kW to 86.4 kW. A listing that gives a power figure is describing one specific build, not the whole model.
V3300, V3307, V3600 and V2403 Are Not V3800: The V3 series covers several displacements, and listings bundle them in one title. The V3800 is 3.769 L on a 100 mm bore, while smaller units are documented at around 3.3 L for the V3307.
Emission Stage Is Coded in the Suffix: The trailing letter groups carry the emission stage and application variant. The engine plate is the only reliable source for code identification.
Product Core Advantages
The V3800 is a 3.769 litre four cylinder built on a 100 mm bore, carrying a name that hides two quite different engines. We provide clear differentiation and verification to ensure you receive the correct engine for your application.
  • DI and CR injection types separated instead of sold under one name
  • Power rating quoted for the specific build, not as a single "V3800-T" figure
  • V3307, V3600, V2403 and V2607 kept out of the V3800 listing
  • Build code and emission stage confirmed from the engine plate
  • Condition tier stated in writing - new, remanufactured or genuine used
Related Products
  • V3800 Overhaul Kit & Cylinder Head
  • V3800 Injectors & Common Rail Pump
  • V3800 Turbocharger & Water Pump
  • Kubota KX080 Hydraulic Pump & Travel Motor
  • Kubota V2403 / V2607 / V3307 Engine Parts
  • Complete Engines for Other Mini Excavator Brands
Frequently Asked Questions
What is this part?
The complete Kubota V3800-T diesel engine assembly for KX080 mini excavators, supplied in mechanical or common rail form.
What are the main specifications?
Kubota V3 series, 4 cylinder, vertical water-cooled, 100.0 x 120.0 mm bore and stroke, 3.769 L, turbocharged.
Are V3800-DI-T and V3800-CR-T interchangeable?
No - DI is mechanical direct injection and CR is common rail electronic injection.
Why do the power figures differ?
Each build code carries its own rating, from 55.4 kW to 86.4 kW.
Is a V3307 or V3600 the same engine?
No - they are different displacements in the same Kubota families.
What do you need before dispatch?
A photograph of the engine plate and the machine serial number.
