Place of Origin:
China
Brand Name:
CAT
Model Number:
3516B

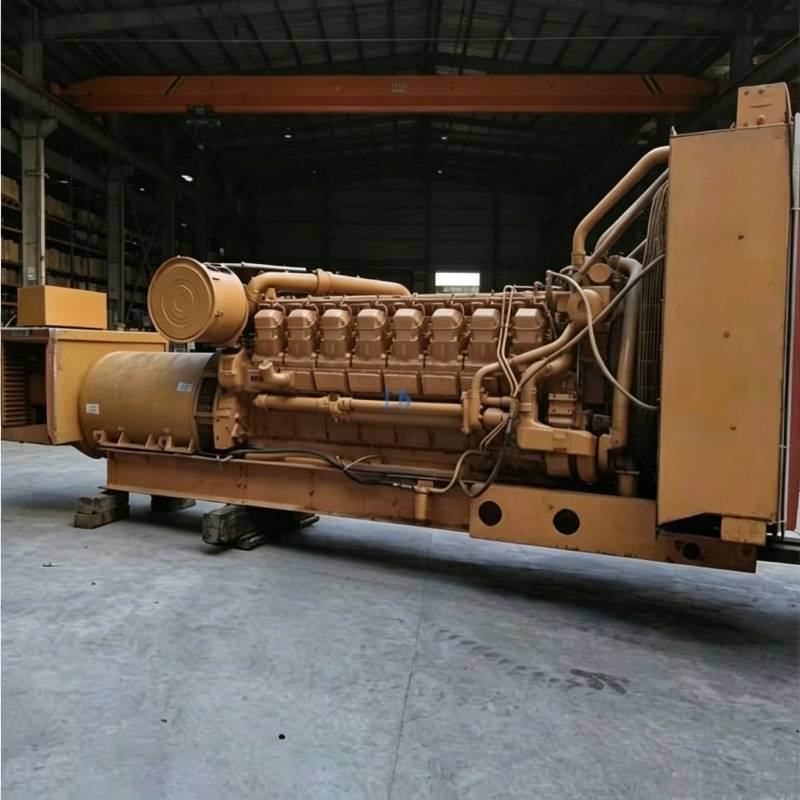

400V 2000KVA AC Three Phase Open Diesel Generating Set 3516B 50Hz for CAT
The CAT 3516B open-frame diesel generator set is a heavy-duty power solution built for industrial and mining applications, delivering 2000 kVA (1600 kW) three-phase AC power at 400V / 50Hz. Powered by the reliable CAT 3516B V12 diesel engine, this unit provides consistent, continuous power for construction sites, remote facilities, and critical operations. Built for durability and performance, it is engineered to withstand the harshest environments while meeting strict power demands.
| Parameter | Specification |
|---|---|
| Generator Model | 3516B Open-Frame Diesel Generator Set |
| Prime Power Rating | 2000 kVA / 1600 kW |
| Voltage & Frequency | 400V, 3-Phase, 50Hz |
| Compatible Engine | CAT 3516B V12 Diesel Engine |
| Configuration | Open-frame industrial design |
| Cooling System | Heavy-duty radiator with industrial cooling fan |
| Control System | CAT digital control panel with monitoring & protection |
| Application | Mining, construction, industrial backup power |
| Condition | Fully tested and serviced, ready for installation |
| Part Number | Part Type | Description & Compatibility |
|---|---|---|
| 3516B | Base Engine/Generator Model | Official base model designation for the 16-cylinder diesel engine/generator |
| 10Z-0135 | Complete Generator Set OEM Number | Factory-original complete genset assembly number for the 2000kVA 50Hz version |
| 10Z-0136 | 60Hz North American Version | 1800rpm variant, same core components, different generator winding |
| 345-3800 | Engine Assembly OEM Number | Factory-original 3516B engine assembly (without generator end) |
| 345-3801 | Service Replacement Engine | Updated service replacement engine assembly for genset applications |
| 345-3802 | Remanufactured Engine Assembly | Factory-remanufactured 3516B engine with full OEM warranty |
