Place of Origin:
China
Brand Name:
Mitsubishi
Model Number:
S16R-PTA

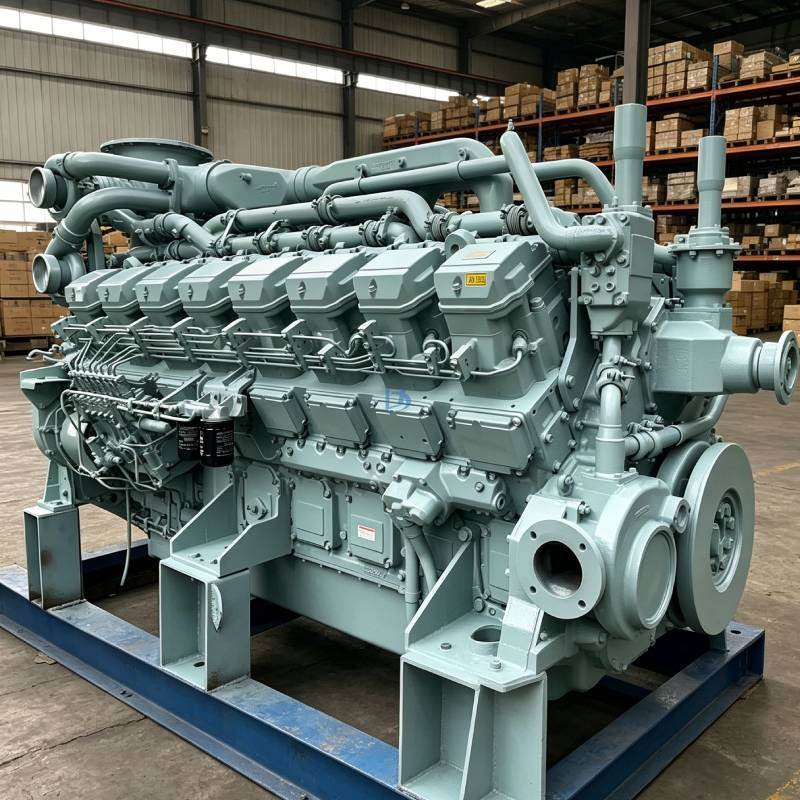

Diesel Generating Set (1620KW) Engine S16R-PTA compatible with Mitsubishi
| Category | Parameter | Specification |
|---|---|---|
| General Information | Engine Model | S16R-PTA |
| Rated Power | 1620 kW (2172 HP) @ 1500 RPM (50Hz) / 1800 RPM (60Hz) | |
| Application | Prime power generator set, continuous-duty industrial power | |
| Condition | New / fully reconditioned, bench-tested and ready for integration | |
| Engine Configuration | Cylinder Arrangement | V16, 4-stroke diesel engine |
| Displacement | 60.4 L (60,400 cc) | |
| Bore × Stroke | 170 mm × 190 mm | |
| Aspiration | Turbocharged + aftercooled | |
| Compression Ratio | 14.5:1 | |
| Combustion System | Direct injection (DI) | |
| Fuel System | Injection Type | Mechanical inline injection pump |
| Governor Type | Electronic speed governor | |
| Fuel Type | Diesel fuel (ASTM No. 2, EN 590) | |
| Fuel Consumption (Prime Power) | ~205 g/kWh (typical at 100% load) | |
| Cooling & Lubrication | Cooling System | Liquid-cooled, high-capacity water pump |
| Lubrication System | Pressure-fed forced lubrication with full-flow filter | |
| Oil Capacity | ~180 L (engine oil sump) | |
| Oil Grade | API CI-4 / CH-4 SAE 15W-40 or equivalent | |
| Electrical & Mechanical | Starting System | 24V electric starter motor |
| Alternator (Charging) | 24V, 50A | |
| Rotation Direction | Counterclockwise (viewed from flywheel end) | |
| Flywheel & Housing | SAE No. 0 flywheel housing, SAE 24" flywheel | |
| Dry Weight | ~6,500 kg | |
| Dimensions (L × W × H) | ~3,500 mm × 1,800 mm × 2,200 mm | |
| Emissions & Compliance | Emission Standard | Non-road equivalent to Tier 1 / Stage I |
| Certification | CE, ISO 9001 (for reconditioned units) | |
| Performance Ratings | Prime Power | 1620 kW (continuous operation, variable load) |
| Standby Power | 1780 kW (10% overload capability for emergency use) | |
| Frequency Compatibility | 50Hz / 60Hz (speed-selectable configuration) | |
| Noise Level | ~105 dB(A) @ 1m (without enclosure) |
