R4105ZD Ricardo S Diesel Engine 1500 rmin 66 KW for Weifang Generator Genset

R4105ZD Ricardo S Diesel Engine 1500 rmin 66 KW for Weifang Generator Genset

Ricardo S Diesel Engine 66KW

Weifang Generator Genset Engine

R4105ZD Diesel Engine 1500rmin

Place of Origin:

China

Brand Name:

Weifang

Model Number:

R4105ZD

Chat Now
Request A Quote
R4105ZD Ricardo S Diesel Engine 1500 rmin 66 KW for Weifang Generator Genset
R4105ZD Ricardo S Diesel Engine 1500 rmin 66 KW for Weifang Generator Genset R4105ZD Ricardo S Diesel Engine 1500 rmin 66 KW for Weifang Generator Genset R4105ZD Ricardo S Diesel Engine 1500 rmin 66 KW for Weifang Generator Genset R4105ZD Ricardo S Diesel Engine 1500 rmin 66 KW for Weifang Generator Genset R4105ZD Ricardo S Diesel Engine 1500 rmin 66 KW for Weifang Generator Genset
Product Details
Product Name:
Generator Genset Engine
Size:
A Standard Size
Model:
R4105ZD
Condition:
New
Delivery:
7-14 Working Days
Payment::
T/T, Western Union,
Application::
Excavator Spare Parts
Highlight:

Ricardo S Diesel Engine 66KW

,

Weifang Generator Genset Engine

,

R4105ZD Diesel Engine 1500rmin

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$3300 - $3500
Packaging Details
Wooden Box
Delivery Time
7-14 work days
Payment Terms
T/T,D/P,D/A,L/C
Supply Ability
999
RELATED PRODUCTS
Good price K19-C520 Complete Engine Assembly 6 Cylinder for Cum-mins Mining Truck Dozer Excavator online video

K19-C520 Complete Engine Assembly 6 Cylinder for Cum-mins Mining Truck Dozer Excavator

Chat Now
Good price V3800-T Diesel Engine Assembly V3800 Engine for Kubota Mini Excavator online video

V3800-T Diesel Engine Assembly V3800 Engine for Kubota Mini Excavator

Chat Now
Good price 6D125-2 Complete Engine Assembly S6D125E-2 11.04L for Komatsu PC400-6 PC450-6 Excavator online video

6D125-2 Complete Engine Assembly S6D125E-2 11.04L for Komatsu PC400-6 PC450-6 Excavator

Chat Now
Good price PC300-8M0 PC360-8M0 Engine Assembly SAA6D114E-3 6D114-3 Engine for Komatsu Excavator online video

PC300-8M0 PC360-8M0 Engine Assembly SAA6D114E-3 6D114-3 Engine for Komatsu Excavator

Chat Now
CONTACT US
86--18688416585
Sales02@lanxinmachinery.com
86--18688416585
Chat Now
Product Description
R4105ZD Ricardo S Diesel Engine
1500 rpm, 66 KW for Weifang Generator Genset
Product Overview
The R4105ZD is a four-cylinder water-cooled direct injection Ricardo-design diesel engine specifically engineered for generator duty applications.
Key Specifications
Model R4105ZD, Weifang Ricardo series
Configuration Four-cylinder in-line, four-stroke, water-cooled, direct injection
Bore x Stroke 105 x 125 mm
Displacement 4.33 litres
Aspiration Turbocharged (Z suffix)
Rated Output 56 kW @1500 rpm (75 HP); 60 kW @1800 rpm
Weight Reference Approximately 440 kg (for intercooled R4105IZLD build)
Application Diesel generator sets, stationary standby and prime power
Condition New (used and second-hand engines also available)
Key Features
  • Four-cylinder water-cooled direct injection Ricardo-design engine
  • Bore and stroke 105 x 125 mm, displacement 4.33 litres
  • Z suffix = turbocharged; L suffix = intercooled
  • Rated 56 kW @1500 rpm and 60 kW @1800 rpm
  • Classic pairing with 50 kW / 62.5 kVA generator sets
  • Family power range spans 10 kW to 350 kW
Cross Compatibility Reference
R4105 Build Variants
R4105D Naturally aspirated, 46 kW @1500 rpm
R4105ZD Turbocharged, 56 kW @1500 rpm
R4105ZLD / R4105IZLD Intercooled, 74 kW @1500 rpm
Suffix Code Explanation
D = direct injection; Z = turbocharged; L = intercooled. Power increases with additional letters: 46 kW / 56 kW / 74 kW on the same block.
Six-Cylinder R Series
R6105ZD (105 x 125 mm, 6.49 litres, 98 kW @1800 rpm) and related variants.
Important Considerations
Engine vs Complete Genset: Most listings for this model are complete generator sets (engine plus alternator, base frame, control panel). A bare R4105ZD engine and a finished 50 kW set are different purchases.
Stroke Variation: The R prefix indicates 125 mm stroke (4.33L). ZH4105, K4105 and N4105 variants have 120 mm stroke (4.15L) - same bore class but different displacement.
Manufacturer Distinction: Weifang and Weichai are separate engine manufacturers with different parts systems, despite both being based in Shandong.
Power Ratings: 56 kW at 1500 rpm and 60 kW at 1800 rpm are generator-duty figures. Always specify duty, speed and alternator rating together.
Core Advantages
Engine and complete generator set quoted as separate purchases
Z and L suffix clearly decoded to prevent confusion between 46 kW, 56 kW and 74 kW builds
R prefix with 125 mm stroke clearly separated from ZH, K and N variants with 120 mm stroke
Duty, speed and alternator rating confirmed together before quoting
Related Products
  • R4105ZD Overhaul Kit & Full Gasket Set
  • R4105ZD Liner, Piston & Ring Kit
  • R4105ZD Fuel Injection Pump & Injectors
  • R4105ZD Cylinder Head & Crankshaft
  • R4105ZD Turbocharger & Water Pump
  • Complete Engines for Other Weifang Ricardo Models
Product Images
K19 Diesel Engine Assembly front view K19 Diesel Engine Assembly side view K19 Diesel Engine Assembly top view K19 Diesel Engine Assembly installation view K19 Diesel Engine Assembly detailed components
Frequently Asked Questions
What is this engine?
The R4105ZD, a four-cylinder 4.33 litre Weifang Ricardo diesel for generator set duty.
What is the bore, stroke and displacement?
105 x 125 mm giving 4.33 litres across four cylinders.
What do the Z and L mean?
Z is turbocharged and L adds intercooling, which raises output to 74 kW.
Is ZH4105ZD the same engine?
No - the ZH build is quoted at 105 x 120 mm, around 4.15 litres.
Is this a complete generator set?
No, this listing is the engine; the engine plus alternator set is quoted separately.
What do you need before dispatch?

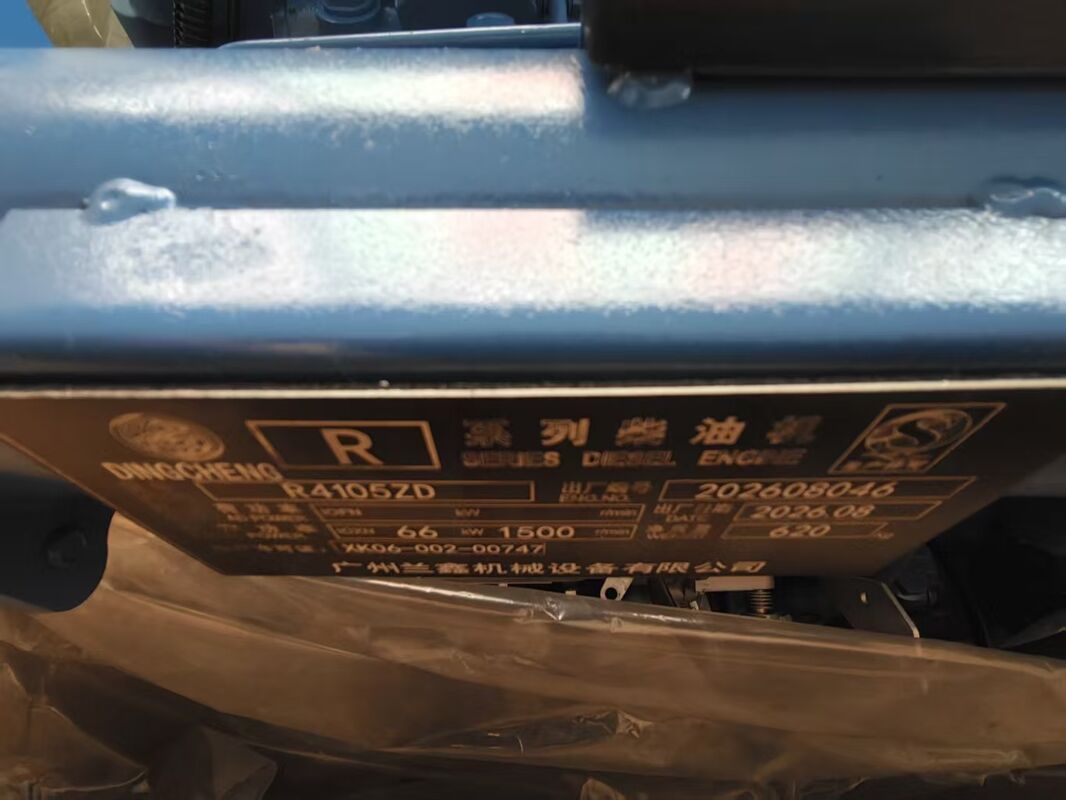

The duty, rated speed and alternator rating, plus a photo of the engine nameplate.
