Place of Origin:
China
Brand Name:
Shantui
Model Number:
SD16

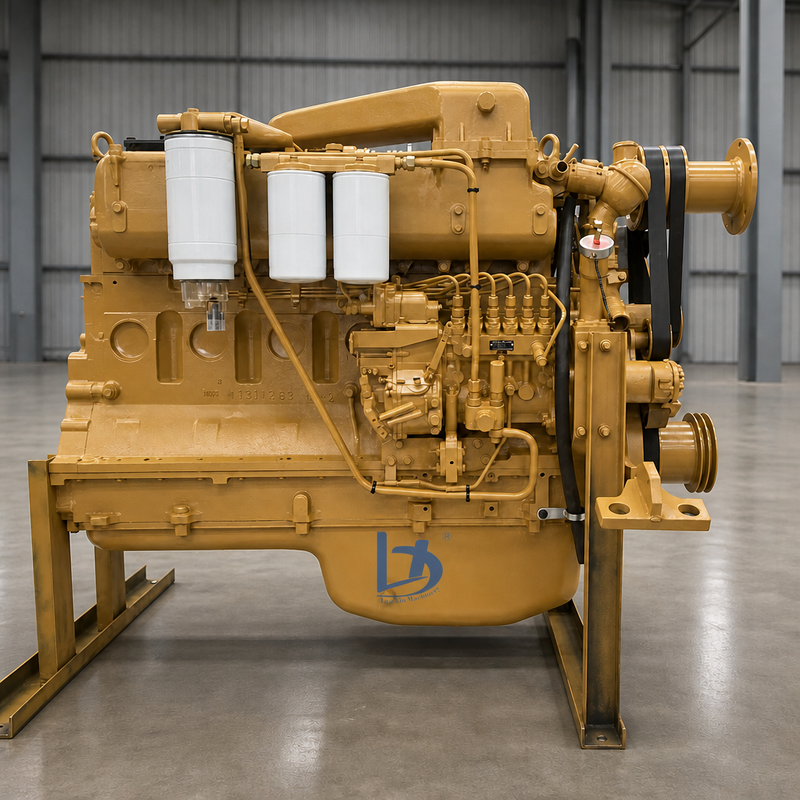

Complete engine assembly for the Shantui SD16 bulldozer, supplied under two distinct engine builds with separate assembly numbers. The published machine sheet lists the SD16E as WD10G178E25 or SC11CB184G2B1 rated 120 kW at 1850 rpm, and the SD16L as WD10G178E25 rated 131 kW at 1850 rpm, on a machine of approximately 17 to 18.5 tonnes. The two builds are not interchangeable, so the engine plate and the assembly number must be quoted together when ordering.
| Item | Specification |
|---|---|
| Product Name | Complete Engine Assembly for the SD16 bulldozer |
| Engine Builds | WD10G178E25 for Weichai; C6121 and SC11CB184G2B1 for Shangchai |
| Assembly Numbers | 16Y-01C-10000; 16Y-01A-01000; 16Y-01D-01000; 16Y-01A-00003 |
| Machine Models | SD16; SD16E; SD16L |
| Configuration | Six cylinder in line, four stroke, water cooled diesel, two valves per cylinder |
| Bore and Stroke | 121 mm by 152 mm on the SC11 or C6121 build |
| Displacement | About 10.49 L on the SC11 build by calculation from 121 mm by 152 mm |
| Compression Ratio | 16.5 to 1 quoted by one dealer sheet |
| Rated Output | 120 kW at 1850 rpm on the SD16E sheet; 131 kW at 1850 rpm on the SD16L sheet |
| Machine Weight | 17,340 kg on the SD16E; 18,460 kg on the SD16L |
| Starting | Electric starter, water cooled |
| Applications | Bulldozer; also quoted for a wheel loader and a crane |
| Condition | New, remanufactured and used assemblies are all traded |
| Packaging | Steel skid, ports capped, moisture barrier, export crate |
| Category | Replaceable Part Numbers & Compatible Models |
|---|---|
| Assembly Numbers | 16Y-01C-10000; 16Y-01A-01000; 16Y-01D-01000; 16Y-01A-00003 |
| Engine Builds | WD10G178E25; WD10G200E25; WD10G220E21; WP10G178E355; C6121; C6121ZG57; C6121ZG70B; SC11CB184G2B1; SC11CB220G2B1; SC11D |
| Component Numbers | 06AL102 crankshaft; C06AB-M06AB102+A crankshaft; 16Y-16-01002 pressure plate; 16Y-03A-0000 water tank assembly; 16Y-11-00018 |
| Compatible Machines | For Shantui SD16, SD16E and SD16L bulldozers, and quoted for the SD22 and SD32; also quoted for XCMG cranes, and for a wheel loader rated 162 kW at 2200 rpm |
The machine sheets give the build as WD10G178E25 or as SC11CB184G2B1, and the market carries 16Y-01C-10000 for the first and 16Y-01A-01000 for the second. A request for an SD16 engine without the build is incomplete, because the two assemblies do not replace one another.
Machine sheets give 120 kW at 1850 rpm, the wetland sheet gives 131 kW at 1850 rpm, and one dealer sheet for the SC11CB184G2B1 gives 135 kW or 184 metric horsepower. A further build, SC11CB220G2B1, is a loader engine at 162 kW and 2200 rpm, so the rating and the duty have to be fixed.
The dealer sheet gives 121 mm by 152 mm, which comes to about 10.49 L over six cylinders; one listing states 14 L and a compression ratio of 14.5 to 1; and another states 16.5 to 1 with a figure of 270 horsepower against a rating of 120 kW. The plate settles the build.
The same C6121 and SC11 family is sold for wheel loaders, for XCMG cranes and for a loader build at 162 kW and 2200 rpm. The machine the engine is coming out of has to be stated rather than assumed.
Entries name SD16, SD22 and SD32 together with 4BTAA, 6CT and N855, which are three different sizes, and a further entry offers 3126B and 3220B for SD08, SD13, SD16, SD22 and SD32. One supplier repeats near-identical headlines in two entries at an identical price.
Complete assemblies are advertised from about USD 1,300 to 8,000, with entries near 100 to 200, near 5 and near 1 to 3 that cannot describe a complete engine. Units are quoted per piece, per set, per unit and per bag, so one delivered price per engine for the stated build should be requested.
Cylinder head and gasket; liner kit; piston and ring set; crankshaft 06AL102; overhaul gasket kit; injection pump and injector; oil pump; water pump and thermostat; starter motor; alternator; flywheel housing; engine mounting.
A complete engine assembly for the SD16 bulldozer, quoted as 16Y-01C-10000 or as 16Y-01A-01000.
Six cylinders in line, 121 mm bore by 152 mm stroke on the SC11 build, 120 kW or 131 kW at 1850 rpm.
The SD16, SD16E and SD16L bulldozers.
No, they are separate assemblies.
A loader build exists with a different rating.
The engine plate, the build and the machine model and serial.
