Place of Origin:
China
Brand Name:
Isuzu
Model Number:
6SD1

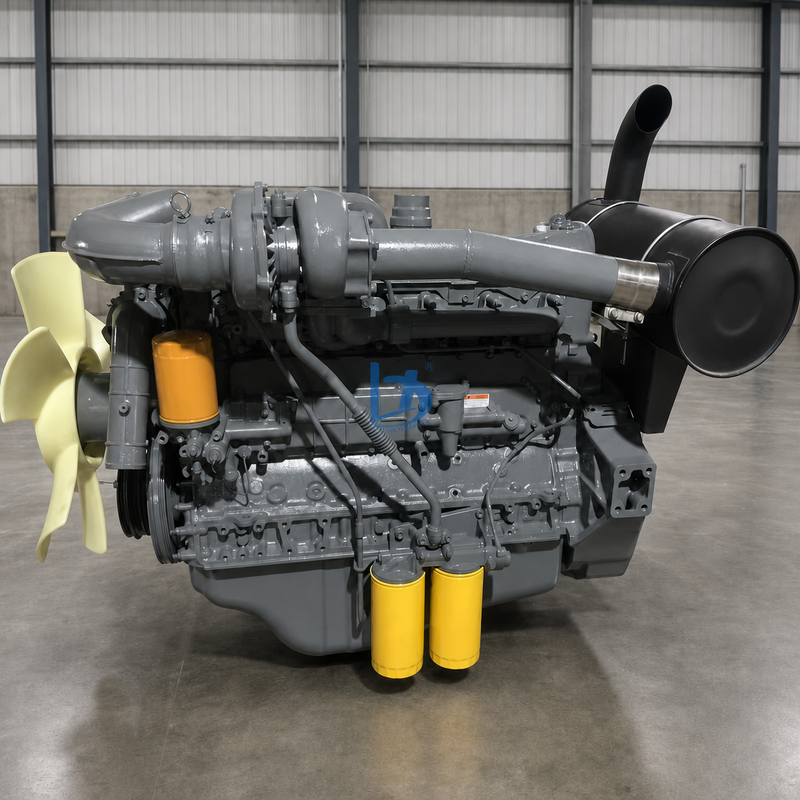

Complete six-cylinder diesel engine assembly for the Isuzu 6SD1 family, quoted for Hitachi EX300 series excavators including the EX300-5. This 9.839 litre unit is built with a mechanically governed in-line injection pump, twelve overhead valves and dry cylinder liners, and is supplied as new, rebuilt or used depending on the build plate and machine application.
| Product Name | Complete Engine Assembly |
|---|---|
| Series | 6SD1, six cylinder heavy duty range |
| Configuration | Inline six, four stroke, water cooled, direct injection with a toroidal bowl |
| Displacement | 9,839 cc, 9.839 L, 600 cu in |
| Bore and Stroke | 120.0 mm by 145.0 mm |
| Compression Ratio | About 17.5:1 plain, 16.5 to 16.8:1 turbocharged, 16.0 to 16.5:1 intercooled |
| Valvetrain | Overhead valves from a gear driven block camshaft, twelve valves |
| Fuel System | In-line A or P type mechanical pump with a mechanical governor and boost compensator |
| Output | 147 kW / 197 hp plain, 165 to 175 kW turbocharged, 213 to 228 kW intercooled; 226.7 hp at 1900 rpm in the EX300-5 |
| Torque | 785 Nm plain, 980 to 1080 Nm turbocharged, 1180 to 1250 Nm intercooled |
| Dry Weight | About 780 kg plain, 820 kg turbocharged, 850 kg intercooled |
| Applications | Quoted for Hitachi in the EX300, EX300-2, EX300-3, EX300-3C and EX300-5, plus the EX350K; also listed for Sumitomo in the SH300 and SH450-3 |
| Condition | New, rebuilt and used assemblies are all traded |
| Category | Replaceable Part Numbers & Compatible Models |
|---|---|
| Liner Set | 1-87810908-0 and 1878109080, supplied with matched pistons, pins and three rings |
| Cylinder Head | 1-11110846-4 and 11111-08464, listed for the plain, turbocharged and intercooled builds |
| Rocker Arm Assembly | 1-12610-045-2, offered as a set |
| Oil Pump | 1-13100191-1, listed for both the plain and turbocharged builds |
| Water Pump | 1-13650059-0 quoted for the EX300-3 turbocharged build, with 1-13610944-0 also listed across the EX300, EX330 and EX350 machines |
| Crankshaft | 1-12310503-2, listed for this engine |
| Nozzles And Sealing | 1153002896 quoted for the EX300-3, 1153190286 listed for Sumitomo machines, with 1153150130 as the injector copper pad |
| Turbocharger | 114400-3140, 1144003140 and VA290021, an RHC7 unit listed for the EX300-2, EX300-3 and EX300-3HHE |
| Model Suffixes | 6SD1, 6SD1T, 6SD1TC, 6SD1-TQA01, A-6SD1TQA, B-6SD1T and 6SD1TPD |
The same block is published at 147 kW plain, 165 to 175 kW turbocharged and 213 to 228 kW intercooled, so the machine build fixes the rating.
Injection is by a mechanically governed in-line pump, while several market entries describe the same engine as common rail, which sends buyers to the wrong pump and nozzle numbers.
1-13650059-0 and 1-13610944-0 both circulate in listings for this engine across the EX300 family.
One market entry headed with this engine quotes 15.7 litres and a 147 mm by 154 mm bore and stroke, figures that belong to a larger engine.
The EX300-5 figure is measured at 1900 rpm, not the 2000 rpm figure published for the engine alone.
Units appear from 1000 to 6462 per piece, most between 2000 and 4000, alongside one set printed at 39108.
Liner set 1-87810908-0; cylinder head 1-11110846-4; rocker arm 1-12610-045-2; oil pump 1-13100191-1; water pump 1-13650059-0; crankshaft 1-12310503-2; nozzle 1153002896; turbocharger 114400-3140; in-line pump; overhaul kit.
The EX300, EX300-2, EX300-3, EX300-3C and EX300-5, with the EX350K also listed. Outside that family it is listed for Sumitomo in the SH300 and SH450-3.
The family is published in three forms: plain near 147 kW, turbocharged from 165 kW and intercooled between 213 and 228 kW, with torque rising across them.
Mechanically. It uses an in-line pump with a mechanical governor and a boost compensator, so there is no common rail or control module to match, and the pump and nozzle numbers come from the build plate.
Liner set 1-87810908-0 is supplied with matched pistons and three rings, and dry liner protrusion must land between 0.05 and 0.10 mm above the deck.
Only against the plate, since one block covers plain, turbocharged and intercooled builds across those machines.
The engine model and serial from the plate, the machine model with its serial, and photographs of both.
6sd1 6sd1t 6sd1tc 6sd1-tc 6sd1-tqa01 a-6sd1tqa b-6sd1t 6sd1tpd 9.839l 9839cc 600ci 120mm bore 145mm stroke inline six direct injection toroidal bowl ohv 12 valve dry liner 147kw 197hp 165kw 221hp 228kw 306hp 226.7hp 169.1kw 785nm 1250nm 1-87810908-0 1878109080 1-11110846-4 11111-08464 1-12610-045-2 1-13100191-1 1-13650059-0 1-13610944-0 1-12310503-2 114400-3140 va290021 rhc7 1153002896 1153190286 1153150130 complete engine assembly diesel engine for isuzu for hitachi ex300 ex300-2 ex300-3 ex300-3c ex300-5 ex300lc5 ex350k ex355 ex370 for sumitomo sh300 sh450-3
