3TNM68 Complete Engine Assembly  for Yanmar Mini Excavator

3TNM68 Complete Engine Assembly  for Yanmar Mini Excavator

Yanmar 3TNM68 complete engine assembly

3TNM68 engine for mini excavator

Yanmar construction engine assembly

Place of Origin:

China

Brand Name:

Yanmar

Model Number:

3TNM68

Chat Now
Request A Quote
3TNM68 Complete Engine Assembly  for Yanmar Mini Excavator
Product Details
Product Name:
Diesel Engine Assembly
Model:
3TNE68 3TNM68 3TNM72 3TNV70 3TNV74 3TNV76 3TNV80 4TNV106 4TNV88 4TNV98 4TNV98T
Delivery:
3-7 Working Days
Payment:
TT..Western Union. Paypal
Highlight:

Yanmar 3TNM68 complete engine assembly

,

3TNM68 engine for mini excavator

,

Yanmar construction engine assembly

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$2800 - $3360
Packaging Details
Wooden Box
Delivery Time
3-7 work days
Payment Terms
T/T,D/P,D/A,L/C
Supply Ability
99
RELATED PRODUCTS
Good price C6.4 Complete Engine Assembly for CAT 320D 323D Excavator online

C6.4 Complete Engine Assembly for CAT 320D 323D Excavator

Chat Now
Good price 4HK1 Complete Engine Assembly  for Isuzu for Hitachi ZX200-3 ZX240-3 online

4HK1 Complete Engine Assembly  for Isuzu for Hitachi ZX200-3 ZX240-3

Chat Now
Good price EX300-5 Excavator Complete Diesel Engine Assembly 6SD1 for Isuzu  online

EX300-5 Excavator Complete Diesel Engine Assembly 6SD1 for Isuzu

Chat Now
Good price 6UZ1 Engine Assembly for Isuzu 6UZ1 Engine for Hitachi ZX470 Excavator online

6UZ1 Engine Assembly for Isuzu 6UZ1 Engine for Hitachi ZX470 Excavator

Chat Now
CONTACT US
86--18688416585
Sales02@lanxinmachinery.com
86--18688416585
Chat Now
Product Description
3TNM68 Complete Engine Assembly for Yanmar Mini Excavator
Product Overview

Complete engine assembly for the three-cylinder Yanmar 3TNM68, quoted as 119127-01560 and available through the CUP2, HGE, AFF, ASA, AMW and GGE builds. The published data gives a four-cycle vertical three-cylinder of 0.784 L (47.8 cubic inch) on a 68 mm bore by 72 mm stroke, indirect injection and naturally aspirated, water cooled, at 14.1 kW or 18.9 hp at 3600 rpm. The engine maker states 14.7 kW for the same model. Market entries also quote 7.3 kW, 12.2 kW and 41.7 kW for the same designation.

Key Features
  • Complete engine assembly for Yanmar TNM series 3TNM68
  • Three cylinders, 68 mm bore by 72 mm stroke, 0.784 L displacement
  • Builds CUP2, HGE, AFF, ASA, AMW and GGE, quoted as 119127-01560
  • Indirect injection, naturally aspirated and water cooled
  • Rated 14.1 kW to 14.7 kW at 3600 rpm on the published data
Product Information
Item Specification
Product Name Complete Engine Assembly
Engine Designation 3TNM68; TNM series
Build Codes 3TNM68-CUP2; 3TNM68-HGE; 3TNM68-AFF; 3TNM68-ASA; 3TNM68-AMW; 3TNM68-GGE
Part Numbers 119127-01560 assembly; P02319-001; 119125-51100 plunger assembly; 119265-11700 cylinder head; 119265-22080 piston assembly
Configuration Four cycle vertical three cylinder diesel
Displacement 0.784 L, 783 cc, 47.8 cubic inch
Bore and Stroke 68 mm by 72 mm
Injection and Aspiration Indirect injection, naturally aspirated
Cooling Water cooled
Rated Output 14.1 kW or 18.9 hp at 3600 rpm; stated as 14.7 kW for the same model
Applications Mini excavator; agricultural machinery; industrial power unit; generator set
Condition New, remanufactured and used assemblies are all traded
Packaging Steel skid, ports capped, moisture barrier, export crate
Cross Compatibility Reference
Category Replaceable Part Numbers & Compatible Models
Engine Designation 3TNM68; TNM series three cylinder
Build Codes 3TNM68-CUP2; 3TNM68-HGE; 3TNM68-AFF; 3TNM68-ASA; 3TNM68-AMW; 3TNM68-GGE
Part Numbers 119127-01560; P02319-001; 119125-51100; 119265-11700; 119265-22080
Compatible Machines Yanmar mini excavators in the ViO20 class; agricultural machinery; industrial power units and generator sets
Related Components Cylinder head 119265-11700; piston assembly 119265-22080; piston and ring set; cylinder liner; crankshaft and bearing set; overhaul gasket kit; plunger assembly 119125-51100; injection pump and injector; oil pump; water pump and thermostat; starter motor; alternator; engine mounting
Important Cautions
Six Ratings Are Quoted For One Model: Market entries give 7.3 kW at 1800 rpm, 12.2 kW, 14.1 kW, 14.6 kW, 14.7 kW and 41.7 kW for this designation. The published figure is 14.1 kW at 3600 rpm and the engine maker states 14.7 kW, so a figure of 41.7 kW from a 0.784 L three cylinder cannot describe this engine.
The Neighbouring Names Are One Letter Apart: Entries write 3TNE68, 3TNE68E, 3d68, 3tn68, 3tna68 and 3TNV68 for the same article. The TNV group runs from 3TNV70 to 3TNV88, so a 68 in that group does not exist, and the TNE group is a separate engine.
Two Component Numbers Belong To Another Model: The cylinder head 119265-11700 and the piston assembly 119265-22080 are listed for the 3TNE68 while appearing in the same search as this engine. A shared family prefix is not proof that the part fits this build.
Identical Headlines From Different Suppliers: Two suppliers carry the same headline for 3TNM68-HGE at 12.2 kW and 14.6 kW with the same case price to within two dollars, and a further pair repeat one headline for 3TNM68-AFF at 14.7 kW. The same headline is therefore not evidence of the same build.
One Entry Names The Wrong Maker: An entry for this engine carries the name of an unrelated brand in place of the engine maker. Where the maker in an entry does not match the maker of the machine, the plate decides.
A Larger Neighbour Costs Twice As Much: The 3TNV88-BDFFC is advertised near USD 9,439 and the 3TNE68E near 5,500 to 6,000, while this engine sits mainly between 2,100 and 3,000. Those are different sizes and the price of one says nothing about the other.
Units Change Between Entries: Entries are quoted per piece, per set, per case, per box, per two pieces, per five sets and per ten sets, and a few sit near USD 30 to 780 for a part rather than an engine. One delivered price per engine for the stated build should be requested.
Product Core Advantages
  • ✓ Bore and stroke published, 68 mm by 72 mm, 0.784 L
  • ✓ Six build codes listed and kept apart
  • ✓ Capacity used to reject a rating that cannot be real
  • ✓ Build and machine serial agreed before the order
Related Products
  • ✓ 3TNM68 Complete Engine Assembly 0.784 L
  • ✓ 3TNM68-CUP2 Engine Assembly
  • ✓ 3TNM68-HGE Engine Assembly
  • ✓ 119127-01560 Engine Assembly Number
  • ✓ 119125-51100 Plunger Assembly
  • ✓ 3TNM68 Overhaul Kit and Liner Kit
  • ✓ 3TNM68 Cylinder Head and Gasket Set
Product Images

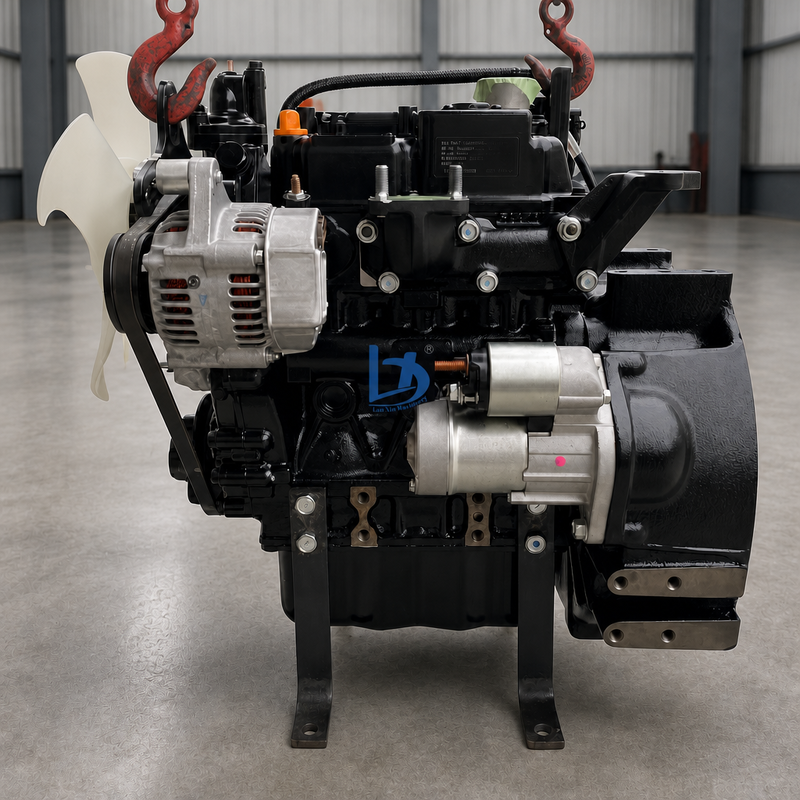

Yanmar 3TNM68 complete engine assembly front view showing cylinder head and block
Front view of the 3TNM68 engine assembly
Yanmar 3TNM68 engine assembly side view showing water pump and injection pump
Side view of the 3TNM68 engine assembly
Yanmar 3TNM68 engine assembly top view showing valve cover and intake manifold
Top view of the 3TNM68 engine assembly
Yanmar 3TNM68 engine assembly detailed components including cylinder head and piston assembly
Detailed components of the 3TNM68 engine assembly
Yanmar 3TNM68 complete engine assembly unit ready for installation
Complete 3TNM68 engine assembly unit
Frequently Asked Questions
Q1: What is this part?
A complete three cylinder engine assembly for Yanmar 3TNM68, quoted as 119127-01560.
Q2: What are the main specifications?
0.784 L, three cylinders, 68 mm bore by 72 mm stroke, indirect injection, water cooled, 14.1 kW to 14.7 kW at 3600 rpm.
Q3: Which machines use it?
Mini excavators, agricultural machinery and industrial power units.
Q4: Is the 3TNV88 the same engine?
No, it is a larger three cylinder engine.
Q5: Can this engine make 41.7 kW?
No, the capacity does not allow it.
Q6: What do you need before dispatch?
The engine plate, the build code and the machine model and serial.
