Name: 3024C Complete Engine Assembly for Cat Excavator Diesel Engine
Brand: Guangzhou Lanxin Machinery Equipment Co., Ltd
SKU: 3024C
Price: 4500.00 USD
Availability: InStock

Home > products > Construction Engine >

3024C Complete Engine Assembly for Cat Excavator Diesel Engine

3024C Complete Engine Assembly

Cat Excavator Diesel Engine

Construction Engine Assembly

Place of Origin:

China

Brand Name:

CAT

Model Number:

3024C

Chat Now

Request A Quote

Product Details

Product Name:

Diesel Engine Assembly

Condition:

New

Delivery:

7-14 Working Days

Model:

3024C 3024C T 3024 C2.2 3013C 3014 3034 3044C 3054C 3056

Highlight:

3024C Complete Engine Assembly

Cat Excavator Diesel Engine

Construction Engine Assembly

Payment & Shipping Terms

Minimum Order Quantity

Price

$4200-$4800

Packaging Details

Wooden Box

Delivery Time

7-14 work days

Payment Terms

T/T,D/P,D/A,L/C

Supply Ability

999

C6.4 Complete Engine Assembly for CAT 320D 323D Excavator

Chat Now

4HK1 Complete Engine Assembly for Isuzu for Hitachi ZX200-3 ZX240-3

Chat Now

EX300-5 Excavator Complete Diesel Engine Assembly 6SD1 for Isuzu

Chat Now

6UZ1 Engine Assembly for Isuzu 6UZ1 Engine for Hitachi ZX470 Excavator

Chat Now

86--18688416585

Sales02@lanxinmachinery.com

86--18688416585

Chat Now

Product Description

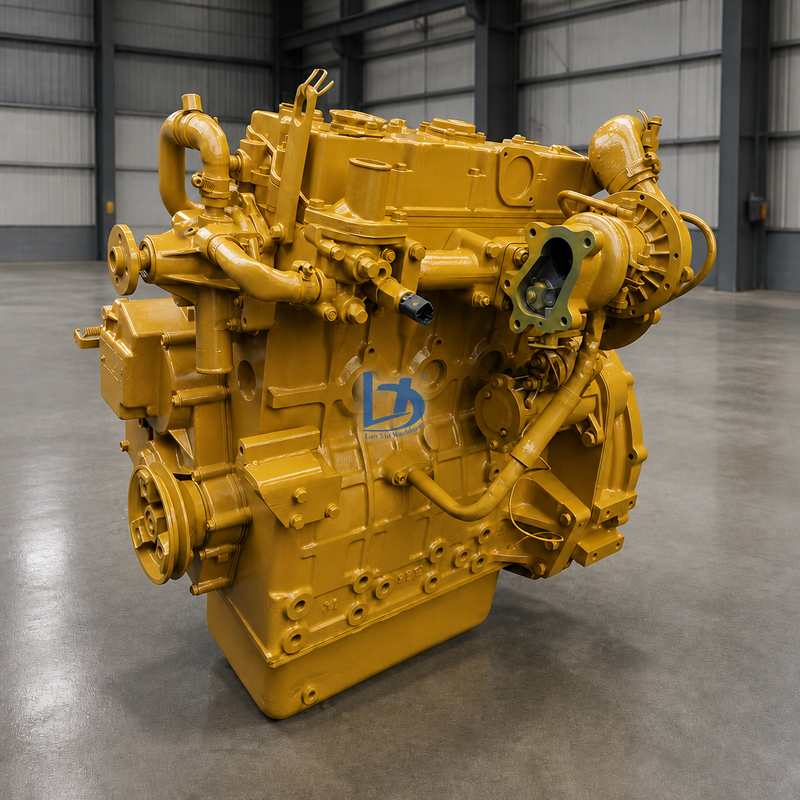

3024C Complete Engine Assembly for Cat Excavator Diesel Engine

Complete engine assembly for the 3024C, also supplied as the 404D-22, 404C-22, and C2.2 / C2.2T. This turbocharged four-cylinder diesel engine displaces 2.2 L (2217 cc / 134.6 cu in) with an 84 mm bore and 100 mm stroke. Published ratings range from 31 kW (41.6 hp) to 44.7 kW at 2800 rpm, with torque quoted at 105.2 and 139.5 lb-ft at 1800 rpm. The rating belongs to the specific build, not the family name.

Key Features

Complete engine assembly for Perkins 3024C, 404D-22 and 404C-22
Same engine supplied as C2.2 and C2.2T
Four cylinders, 84 mm bore by 100 mm stroke, 2.217 L displacement
Assembly references GP58B12600 and 168-3313
Fitted to skid steer loaders, compact track loaders and small excavators

Product Information

Item	Specification
Product Name	Complete Engine Assembly
Engine Designation	3024C; 404D-22; 404C-22; 404A-22; 404F-22; 404D-22T; 404D-22TA; 104-19
Second Designation	C2.2; C2.2T
Assembly References	GP58B12600; 168-3313
Component Numbers	131010080 fuel injection pump; 104134-40602 and 104134-4060 injection pump; 297-3050 oil pump; U5MK8266; 023660D; 023661D; 6602D
Configuration	Four cylinder in line, four stroke, water cooled diesel
Displacement	2.2 L, 2217 cc, 134.6 cubic inch
Bore and Stroke	84 mm by 100 mm
Aspiration	Naturally aspirated or turbocharged, depending on the build
Published Output	31 kW or 41.6 hp minimum, and 36.3 kW or 48.7 hp on published sheets; 44.7 kW at 2800 rpm and 50 hp are also quoted
Published Torque	105.2 lb-ft and 139.5 lb-ft, both at 1800 rpm
Emission Level	Published as EU Stage IIIA and US EPA Tier 4 interim equivalent
Applications	Skid steer loader; compact track loader; small excavator; industrial power unit
Condition	New, remanufactured and used assemblies are all traded
Packaging	Steel skid, ports capped, moisture barrier, export crate

Cross Compatibility Reference

Category	Replaceable Part Numbers & Compatible Models
Engine Designation	3024C; 404D-22; 404C-22; 404A-22; 404F-22; 404D-22T; 404D-22TA; 104-19
Second Designation	C2.2; C2.2T
Assembly References	GP58B12600; 168-3313
Component Numbers	131010080; 104134-40602; 104134-4060; 297-3050; U5MK8266; 023660D; 023661D; 6602D
Compatible Machines	for CAT 216B, 226B, 232B, 247B, 257B2 skid steer and compact track loaders, and the 249D and 301.7; also quoted for JCB 8018 mini excavator and for a small excavator

Important Notes Before Ordering

One Engine, Two Brand Designations: Parts sources list 404C-22 and 3024C as one unit, and a further source offers the 404D-22 power unit as the 3024C and the C2.2. The same 2.2 L four is therefore sold under both the engine maker name and the machine maker name, so each brand name needs its own qualifier.

Four Published Ratings For One Size: Sheets give 31 kW or 41.6 hp and 36.3 kW or 48.7 hp, a surplus unit is listed as 50 hp, and one entry states 44.7 kW. Torque is given at 105.2 and at 139.5 lb-ft, both at 1800 rpm, so the duty point has to be agreed in writing.

A Third Engine Family Appears In Headings: Two entries mix the designations N844, N844L, TLT30 and U45010062 into this model. One dealer lists the N844T form alongside the turbo build of this engine, so the correspondence should be confirmed from the plate before a number from that naming system is ordered.

A Larger Neighbour Shares The Search: Entries for the 3054C and the 1104-44T appear beside this engine at 5,400 to 8,461. The 3054C is a much larger four cylinder, so a price or size taken from that group does not describe this engine.

Identical Headings From Two Suppliers: Two suppliers carry one identical heading for 404D-22T with the assembly reference GP58B12600, and two further suppliers repeat one heading for this engine with a case or unit price. An identical heading is not evidence that the same build is supplied.

Prices and Units Are Not Comparable: Complete assemblies for this engine are advertised from about USD 580 to 6,370, with the main group between 1,180 and 4,000, and several entries span two or three times their lowest figure. Units include piece, set, unit, ten pieces and dozen, so one delivered price per engine for the stated build should be requested.

Related Components

Cylinder head assembly; head gasket; piston and ring set; cylinder liner; crankshaft and bearing set; overhaul gasket kit; fuel injection pump 104134-40602; oil pump 297-3050; water pump and thermostat; starter motor; alternator; flywheel housing; engine mounting.
