Place of Origin:
China
Brand Name:
CAT
Model Number:
3116

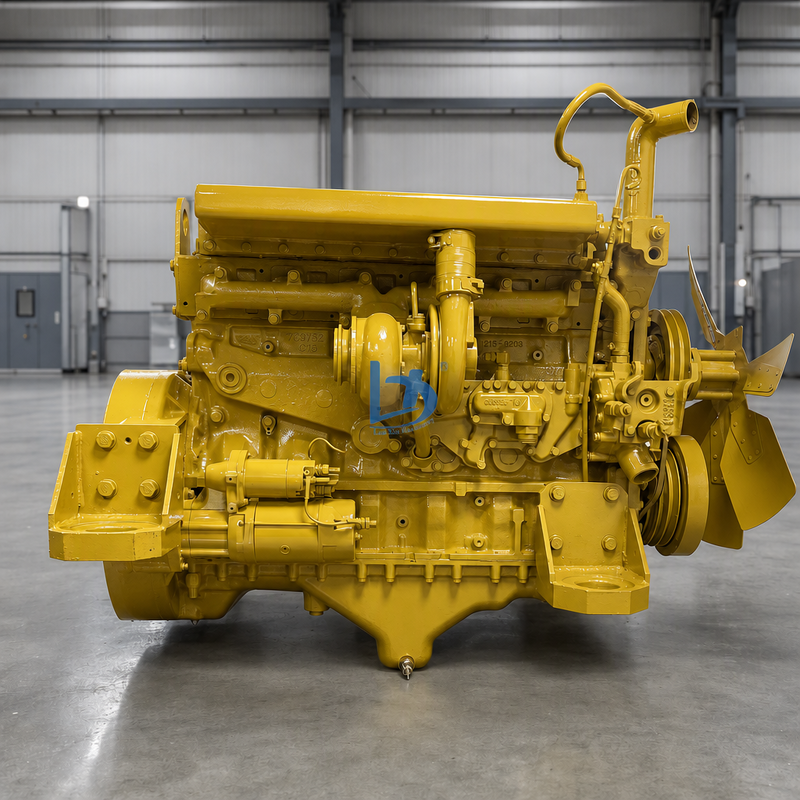

Complete 3116 engine assembly for the CAT 325B excavator and related machine frames. The 3116 is a 6.6 litre (402 cu in) inline six running a 105 mm bore and 127 mm stroke, fuelled by camshaft-driven mechanical unit injectors with no high-pressure injection pump anywhere in the circuit. Assembly number 114-2912 covers the machine builds, and remanufactured units travel on 0R-4426.
This page sets the 3116 against its electronic successor, the 3126, and lists the near-identical injector numbers that cause most wrong orders.
| Product Name | Complete Engine Assembly |
|---|---|
| Engine Model | 3116, also built as 3116T and 3116TA |
| Configuration | Inline six, four stroke, liquid cooled |
| Displacement | 6.6 L / 402 cu in |
| Bore and Stroke | 105 mm by 127 mm |
| Fuel System | Mechanical unit injectors, rack bar metering |
| Compression Ratio | 16.5 to 18.5 to one, by build |
| Output Range | 170 to 355 hp depending on rating and duty |
| Assembly Number | 114-2912 |
| Reman Number | 0R-4426, exchange basis |
| Condition | New, rebuilt and used all in circulation |
| Packaging | Timber crate, capped ports, strapped, desiccant |
| Documents | Plate photograph, arrangement number, packing list |
| Electronic Successor | 3126 measures 7.2 litres on a 110 mm bore and runs hydraulic electronic unit injection, so its cylinder head, harness and ECM have no counterpart here |
|---|---|
| Unit Injector Family | 127-8216, 127-8222, 127-8218, 127-8209 and 127-8213 all fit this engine at different ratings |
| Piston Body | 7E3428 is listed for 3116 and for the four cylinder 3114, so the two share top end hardware |
| Machine Builds In Trade | 320B, 322B, 325B, 325C, 320L, 950F, 960F and 963C are the frames most often quoted beside 114-2912 |
| Related Components | Cylinder head, gasket set, piston body, liner, bearings, unit injector, transfer pump, turbocharger, oil pump, water pump, valve cover gasket |
Fuel is metered at the injector and pressurised by the camshaft, so a listing that sells an injection pump for this model is selling either a transfer pump or a part for the electronic engine.
Replacing one injector without setting rack travel leaves that cylinder fuelling differently from the other five.
Headings that print 127209 are a dropped digit for 127-8209, and the same shortening appears across the family.
The 320C is normally supplied with the smaller 3066, so a heading placing this engine in a 320C needs the serial number checked before an order.
Offers for one model span from under four thousand to above eighty thousand yuan, and the low end is normally a core, a short block or a single head.
No, and the difference is deeper than the badge. The 3116 is 6.6 litres with a mechanical rack bar metering fuel at each injector, while the 3126 is 7.2 litres and fires its injectors hydraulically under computer control. Blocks, heads, harnesses and diagnostic routines all differ, so a machine wired for one cannot simply receive the other.
Because the engine never had one in the usual sense. The camshaft lobe pushes each unit injector, and a small transfer pump lifts fuel from the tank to the gallery at low pressure, where the rack decides how much each injector receives. A seller offering a high pressure pump for this model has either confused it with the electronic engine or is describing the lift pump in the wrong words.
Enough that the model name settles nothing. Highway and industrial versions run from about 170 hp to the mid two hundreds, and marine versions reach 355 hp with aftercooling. The rating is fixed by injector specification, timing and turbocharger match, so quoting a horsepower without the application invites a mismatch that shows up as smoke or as a short life.
127-8216, 127-8222, 127-8218, 127-8209 and 127-8213, by rating.
It marks a remanufactured exchange unit, so 0R-4426 returns a core.
The 325B excavator, followed by the 950F and 960F loaders.
