Place of Origin:
China
Brand Name:
CAT
Model Number:
3196

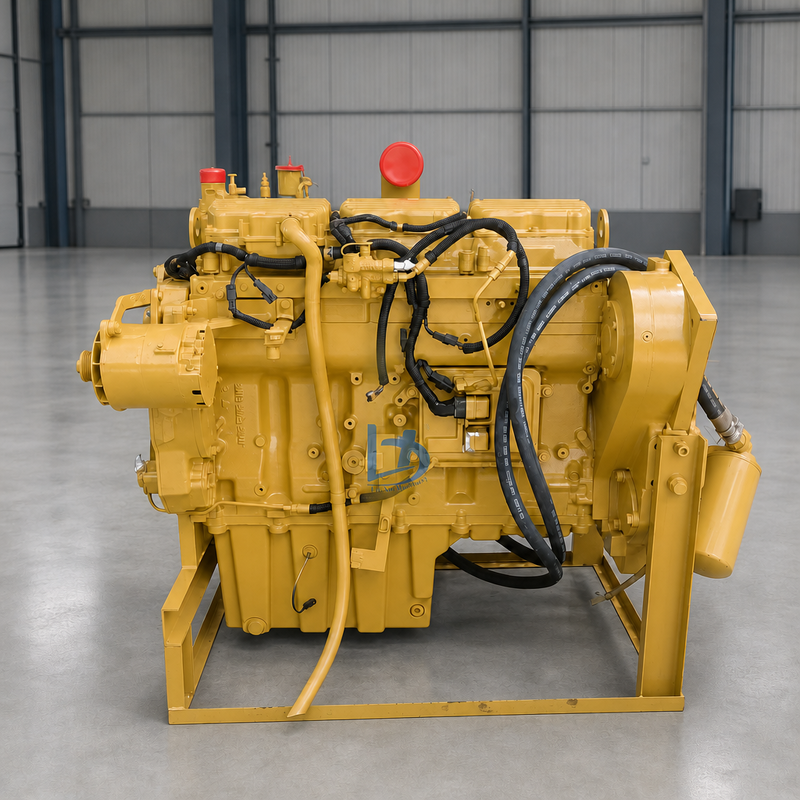

Complete twelve litre inline six diesel engine assembly for the CAT 365B L, 365B L Series II, 365C and 365B L material handler excavators. The published excavator build is turbocharged with air-to-air aftercooling, running a 130 mm by 150 mm bore and stroke at 301 kW / 404 hp gross and 287 kW / 385 hp net at the flywheel. Arrangement 148-2061 is quoted against the 365B, with core arrangement 136-4348 catalogued separately. The same engine is also sold for industrial and marine use at a far higher rating.
| Product Name | Complete Engine Assembly |
|---|---|
| Configuration | Inline six, four stroke, water cooled, turbocharged, air-to-air aftercooled |
| Displacement | 12.0 L, 732 cu in |
| Bore and Stroke | 130 mm by 150 mm |
| Excavator Rating | 301 kW / 404 hp gross; 287 kW / 385 hp net at the flywheel, 2000 rpm |
| Applications | 365B L, 365B L Series II, 365C and the 365B L material handler; also quoted for industrial and marine use |
| Arrangement Numbers | 148-2061 quoted against the 365B; 136-4348 ENGINE AR-CORE |
| Serial Prefixes Seen | 6AR on an industrial unit; 56K on the marine build |
| Condition | New, remanufactured and used assemblies are all traded |
| Packaging | Steel skid, ports capped, moisture barrier, export crate |
| Arrangements | 148-2061; 136-4348 ENGINE AR-CORE |
|---|---|
| Fuel Injector | 350-7555, sold across 3176, 3196, C10 and C12 applications and quoted for the 345B and 365B; exchange number 20R-0056; further numbers seen are 170-5252 and 10R-1003 |
| Cooling and Lubrication | Water pump group 153-8053, listed for the 3176B, 3176C and 3196 families; oil pan gasket 109-5308 |
| Other Components Seen | Idler pulley 173-1498; cylinder head bolt 6V9607 |
| Machine Serial Prefixes | 365B recorded under 9PZ, 9TZ, BTH, CFJ, CTY, PEG, SDL, JMB and DER, all listed as powered by this engine |
Cylinder head; head gasket set; piston and liner kit; crankshaft; bearings; injector 350-7555 and exchange 20R-0056; injection pump; turbocharger; water pump 153-8053; oil pump; oil cooler; overhaul kit.
It went into the 365B L, the 365B L Series II, the 365C and the 365B L material handler, and it is also catalogued for industrial and marine use.
The rating belongs to the build rather than the designation: the excavator build is published near 301 kW / 404 hp gross, while the marine build is sold at 660 hp. The arrangement number on the plate fixes which one an engine is.
Not on the bare designation. The 3176 runs 125 mm by 140 mm at about 10.3 L against 130 mm by 150 mm here, so piston, liner and head numbers are checked against the arrangement.
It is a later designation published with the same size, footprint and connection points.
350-7555 is sold across the 3176, 3196, C10 and C12 applications, with 20R-0056 as the exchange number.
The arrangement number stamped on the engine, together with the machine model and serial.
