Place of Origin:
China
Brand Name:
Yanmar
Model Number:
4TNV98

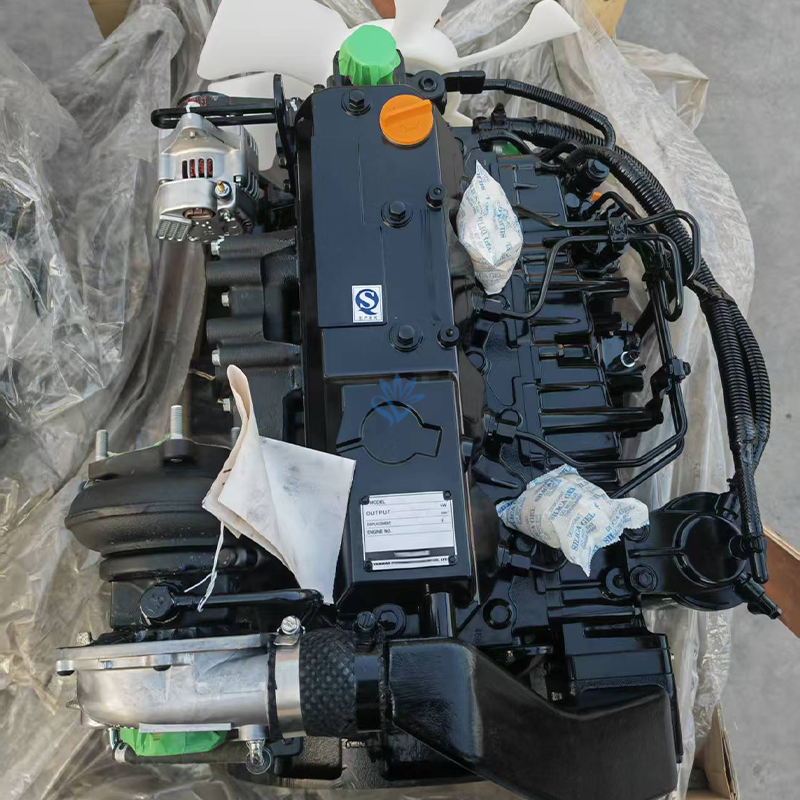

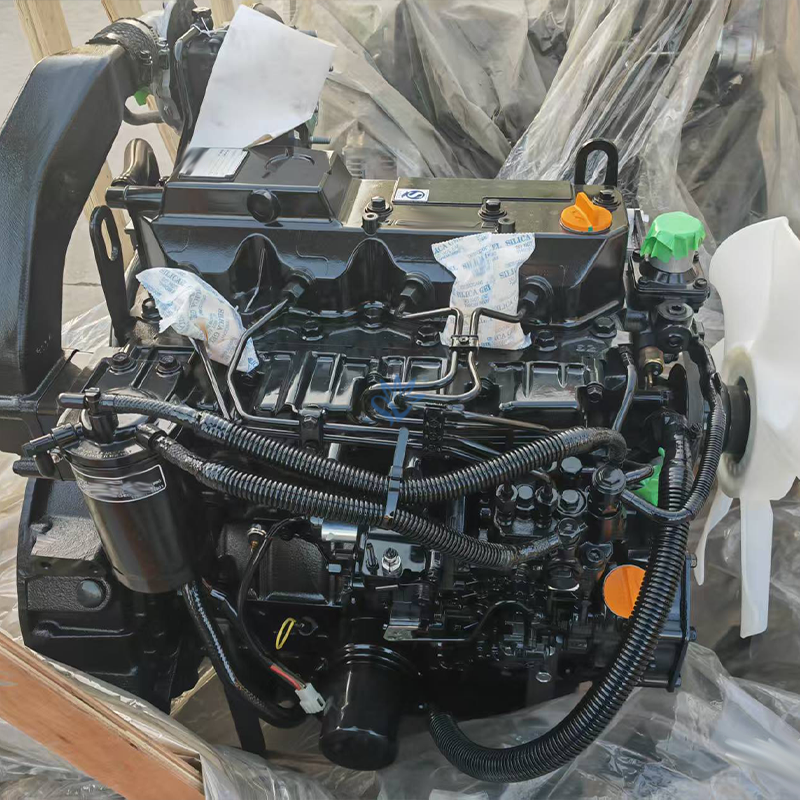

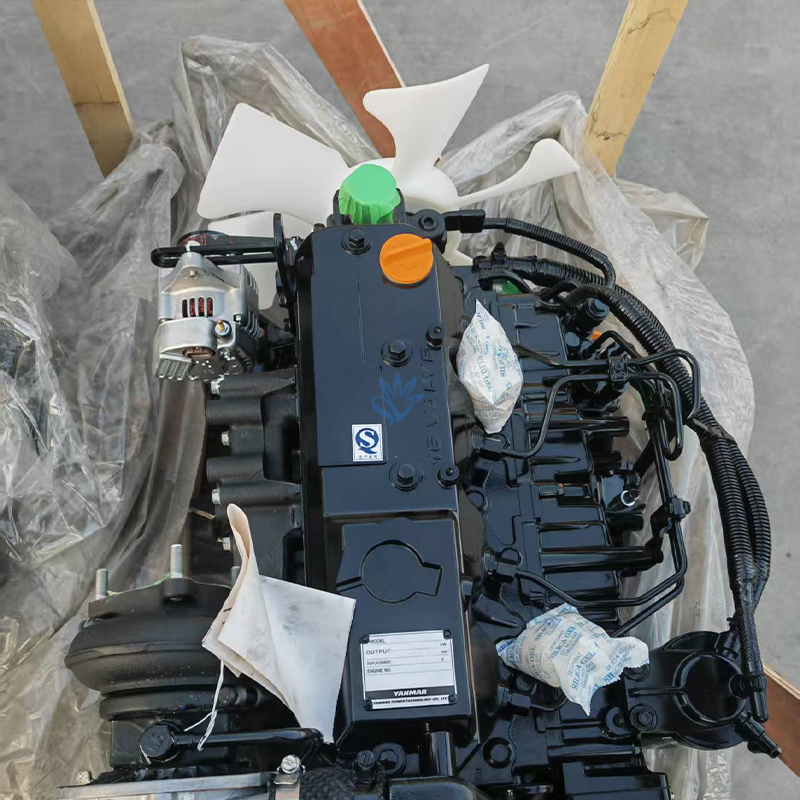

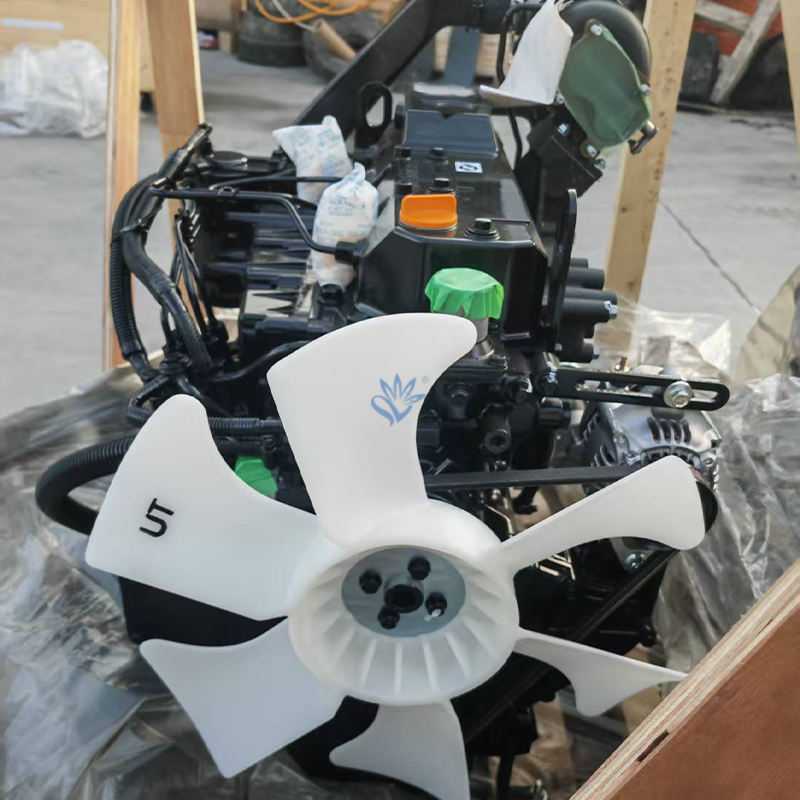

Complete four-cylinder engine assembly for the 4TNV98T in its generator drive build. Published data is 98 mm by 110 mm at 3.319 litres, direct injection and turbocharging, with 41.4 kW at 1500 rpm for continuous duty and 50.1 kW at 1800 rpm for standby in generator set specifications. Other suffixes of the family are listed for excavators.
| Item | Specification |
|---|---|
| Product Name | Complete Engine Assembly |
| Series | TNV, four-cylinder water-cooled range |
| Build Code | The suffix identifies a generator drive unit; the family also carries codes for machine use |
| Configuration | Vertical inline four, four-stroke, water-cooled, direct injection, turbocharged |
| Displacement | 3.319 L, 202.5 cu in |
| Bore and Stroke | 98 mm by 110 mm |
| Rating In This Build | 41.4 kW at 1500 rpm continuous, 50.1 kW at 1800 rpm standby |
| Rating In Other Builds | 52.1 kW for the plain engine and 63.9 to 64.1 kW for the turbocharged industrial version, both at 2500 rpm |
| Governor | Mechanical, driving the injection pump directly |
| Applications | Generator sets carrying this code, including the 40 and 41 kVA class; the family is also listed for Yanmar in the ViO75, ViO80 and B7-6 and for Hyundai in the R55W-9 and R60 |
| Condition | New, rebuilt and used assemblies are all traded |
| Category | Replaceable Part Numbers & Compatible Models |
|---|---|
| Piston And Kit | 129907-22090, the piston number quoted for the plain engine in major overhaul kits |
| Main Bearing Set | 129907-01331 and 729900-02801 listed for the family, with 129900-02341 for 0.25 undersize and 129900-02941 at the 0.25 thrust position |
| Build Suffixes In The Family | GGE, GGEC, GGECC, GGEH, GGEHC, GGEHR, GGEP, GGK, GGKM, GECS, GGB1B and GAGR, with ZNSA, ZNSV, ZNTBL, SFN, ZCSTYC and VSY for machine use |
| Machines Using The Family | Quoted for Yanmar in the ViO75, ViO80, ViO80-1 and B7-6, suitable for Hyundai in the R55W-9 and R60, plus the CTL70, CTL80, MTL20 and MTL25 loaders |
A generator unit is governed to hold set speed and carries its own rating, so it is not a drop-in replacement for a machine engine even though the block is the same.
The same engine is published at 41.4 kW continuous and 50.1 kW standby for generator duty, against 52.1 and up to 64.1 kW at 2500 rpm.
Another make's four-cylinder engine displaces 3.331 L against 3.319 L here, so capacity alone does not identify the engine.
Generator builds are described as mechanical, while several market listings offer the same designation as electronically controlled, pointing to other suffixes in the family.
Units for this family appear from 1080 to 4500 per piece, most between 2000 and 4000, alongside entries priced per parcel, per dozen and per kilogram.
Piston 129907-22090; liner kit; ring set; main bearing set 129907-01331; cylinder head; head gasket; injection pump; injector; turbocharger; water pump; oil pump; overhaul kit.
It marks a generator drive build of the four-cylinder turbocharged engine, catalogued for generator sets with its own ratings.
The family does, under other suffixes: it is listed for Yanmar in the ViO75, ViO80 and B7-6, and suitable for Hyundai in the R55W-9 and R60.
Because generator duty is rated differently. The generator build is listed at 41.4 kW at 1500 rpm for continuous work and 50.1 kW at 1800 rpm for standby, against 52.1 and up to 64.1 kW at 2500 rpm for industrial use.
The generator build is described as mechanical, driving the injection pump directly without an electronic control module.
Overhaul kits carry piston 129907-22090 and bearing set 129907-01331 is listed for the family.
The full model code from the plate, the engine serial, and photographs of both.
4tnv98t-ggecc, 4tnv98-ggecc, 4tnv98t-gge, 4tnv98-gge, 4tnv98t, 4tnv98, 4tnv98c, 4tnv98ct, 3.319l, 3319cc, 202ci, 98mm bore, 110mm stroke, four cylinder turbocharged, direct injection, mechanical governor, 41.4kw 1500rpm, 50.1kw 1800rpm, 52.1kw, 63.9kw, 64.1kw, 129907-22090, 129907-01331, 129900-02341, 129900-02941, 729900-02801, complete engine assembly, diesel engine for yanmar, generator drive, genset, vio75, vio80, b7-6, for hyundai, r55w-9, r60, ctl70, ctl80, mtl20, mtl25
