Place of Origin:
China
Brand Name:
CAT
Model Number:
C18

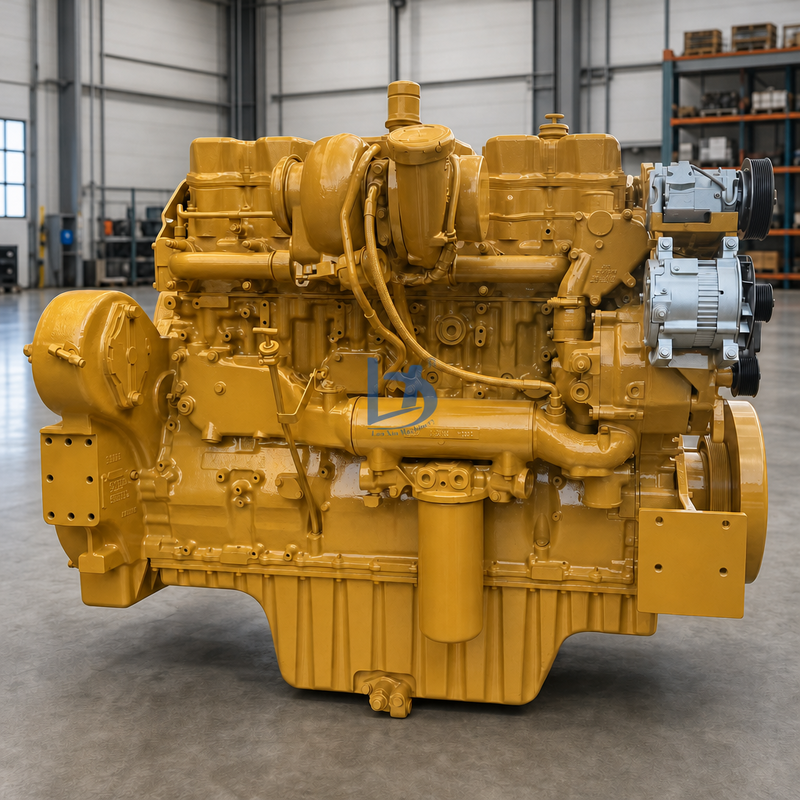

This is a complete C18 diesel engine assembly for CAT equipment, built as a 6 cylinder in-line, 18.1 litre, turbocharged and aftercooled ACERT engine. The reference build is Engine Arrangement 359-1812, rated 630 hp at 2100 rpm — the same output quoted as 470 kW for the E390D. Because the C18 name covers mobile, generator and industrial ratings, the arrangement number and the rating are what identify the correct engine.
| Product Name | Complete Diesel Engine Assembly |
|---|---|
| Engine Model | C18; C18 ACERT |
| Engine Arrangement Numbers | 359-1812; 3591812; 262-4153; 2624153; 234-7848; 2347848 |
| Configuration | 6 cylinder in-line, 4 stroke, turbocharged and aftercooled, ACERT |
| Displacement | 18.1 litres |
| Rated Output | 630 hp at 2100 rpm on arrangement 359-1812, equivalent to 470 kW as quoted for the E390D; other ratings run from about 600 ekW at 1800 rpm for generator duty to 800 hp for industrial use |
| Machine Fitment | 390F; 390FL; 395; E390D; 374F; 374FL; 988K; D9T; 18 Motor Grader |
| Engine Dry Weight | About 1,717 kg |
| Condition | New, remanufactured and genuine used units are all traded in this class |
| Packaging | Drained, openings capped, mounted on a steel skid, export crated |
| Engine Model | C18; C18 ACERT |
|---|---|
| Arrangement Numbers | 359-1812; 3591812; 262-4153; 2624153; 234-7848; 2347848 |
| Compatible Machines | 390F; 390FL; 395; E390D; 374F; 374FL; 988K; D9T; 18 Motor Grader; generator sets at 600 ekW and 750 kVA |
| Compatible Family | 3046; 3064; 3066; 3116; 3204; 3304; 3306; 3406; 3408; C4.4; C6.6; C7; C7.1; C9; C9.3; C10; C11; C13; C15; C18; C27; C32 |
The same C18 name covers a 630 hp at 2100 rpm mobile arrangement, a 600 ekW at 1800 rpm generator drive and an 800 hp industrial build. Turbocharger, governor, flywheel housing and rating differ between them, so the arrangement number and the rating are what must match.
Several sellers list 319-6715; 3196715 as a hydraulic diesel piston body assembly for C18, C27 and C32 at a few tens of dollars per set. It sits inside engine assembly searches and is a component of the engine rather than an engine.
Titles bundle 3306, 3406, 3408, C11, C13, C15, C18, C27 and C32 in one line, and several quote a single set price across all of them. These are engines of different displacement and mounting, and a C15 does not replace a C18.
The same search returns a few hundred dollars per piece, tens of thousands per piece, tens of thousands per dozen, and one listing spanning a sixfold range inside a single number. Compare per single engine and confirm the condition tier in writing.
C18 cylinder head and head gasket; cylinder liner and piston kit; crankshaft and main bearings; turbocharger; unit injector and injection pump; oil pump and water pump; ECM and harness; flywheel and housing; radiator and oil cooler; overhaul kit; complete gasket kit; engine mounts.
A complete C18 engine assembly for CAT machines, 6 cylinder and 18.1 litres, quoted on arrangement number 359-1812.
630 hp at 2100 rpm, which is the same rating quoted as 470 kW for the E390D.
390F, 390FL, 395, E390D, 374F and 988K class machines, plus D9T and generator sets.
No, they are different displacements and mountings.
Yes, but it is a different rating and arrangement.
The machine model and serial, and the arrangement number from the old engine plate.
c18, c18 acert, 359-1812, 3591812, 262-4153, 2624153, 234-7848, 2347848, engine arrangement 3591812, engine assembly c18 engine for CAT, c18 diesel engine 6 cylinder, 18.1 litre turbocharged aftercooled excavator engine, 390f, 390fl, 395, e390d, 374f, 374fl, complete engine assembly for CAT 988k, for CAT d9t, for CAT 18 motor grader, generator set 600 ekw 750 kva 1800 rpm, industrial engine c18 630 hp 2100 rpm 470 kw, c18 engine rebuild, engine long block, c18 cylinder head, c18 crankshaft, c18 overhaul kit, for CAT engine family 3046, 3064, 3066, 3116, 3204, 3304, 3306, 3406, 3408, c4.4, c6.6, c7, c7.1, c9, c9.3, c10, c11, c13, c15, c18, c27, c32
