Place of Origin:
China
Brand Name:
CAT
Model Number:
3516B 3516C

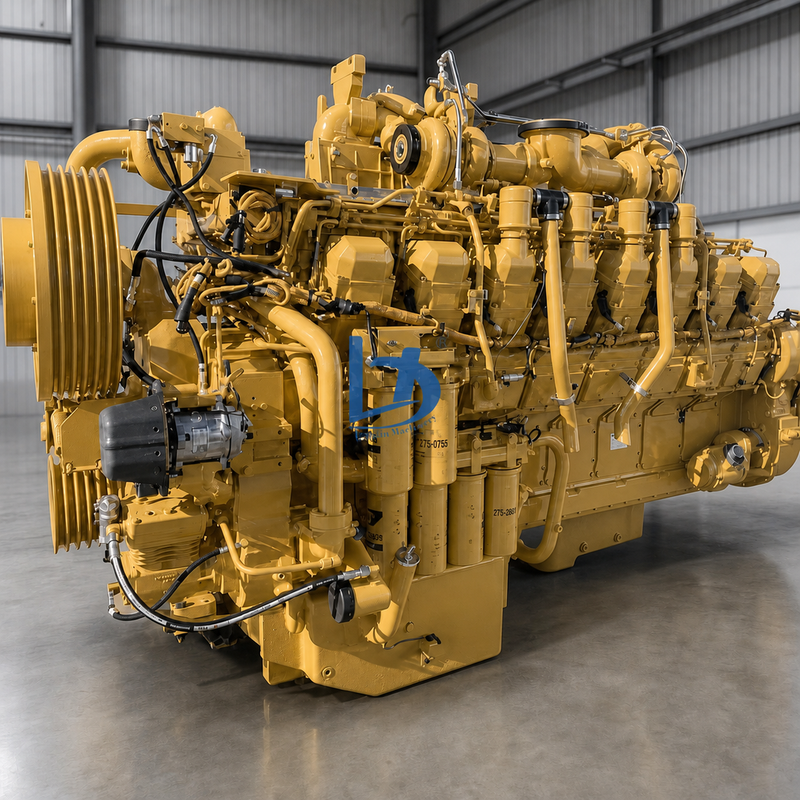

Complete engine arrangement for the CAT 789D off-highway truck, catalogued as 357-7050 ENGINE AR and published with replacement number 561-2197 ENGINE AR-COMPLETE. The 3516 V16 four-stroke water-cooled diesel is rated at 1750 rpm for engine serial range B8F1-UP, displacing 78.1 L (4766 cu in) with a 170 mm by 215 mm bore and stroke. Standard output is 1566 kW / 2100 hp gross and 1468 kW / 1969 hp net; the 3516B EUI alternative is offered at 1417 kW / 1900 hp gross and 1320 kW / 1771 hp net.
| Item | Specification |
|---|---|
| Product Name | Complete Engine Arrangement |
| Machine | 789D Off-Highway Truck, SPD and XDT attachments |
| Engine | 3516, V16 four stroke water cooled diesel, EUI |
| Displacement | 78.1 L, 4766 cu in |
| Bore and Stroke | 170 mm by 215 mm |
| Rated Speed | 1750 rpm |
| Output | 1566 kW / 2100 hp gross and 1468 kW / 1969 hp net on the standard engine; 1417 kW / 1900 hp gross and 1320 kW / 1771 hp net on the optional engine |
| Catalog Numbers | 357-7050 ENGINE AR; replacement 561-2197 ENGINE AR-COMPLETE |
| Serial Range | B8F1-UP |
| Condition | New, remanufactured and used arrangements are all traded |
| Packaging | Steel skid, ports capped, moisture barrier, export crate |
| Category | Replaceable Part Numbers & Compatible Models |
|---|---|
| Arrangement Numbers | 357-7050 ENGINE AR; 561-2197 ENGINE AR-COMPLETE, published as its replacement; 488-8186 given by one supplier as a further replacement |
| Neighbouring Arrangements | 357-7051; 288-5678 ENGINE AR-COMPLETE; 473-0489 ENGINE AR-PRIMARY; 556-3418; 365-9316; 423-1996; 472-5676 |
| Earlier 789 Arrangement | 2W-3691 ENG AR-3516, with related number 7C3355 |
| Component Example | 393-4975 cover group-camshaft, quoted for serial range B8F1-UP and used across 357-7050, 357-7051 and 561-2197 |
Cylinder head; camshaft cover 393-4975; cylinder kit; piston and liner; crankshaft; bearings; injector; turbocharger; oil pump; oil cooler; water pump; overhaul kit; gasket set.
It is an arrangement number rather than a single component. The catalogue lists it as ENGINE AR at 1750 rpm for the B8F engine serial range, built from many individual parts, so the number fixes the assembly and not one casting.
The same arrangement. It is published as the replacement catalog number for 357-7050 and is also used for the remanufactured route, so both numbers describe one unit for the 789D. One supplier lists a further replacement, 488-8186.
By the engine serial number and the plate, not by the truck model, because both engines were offered on the same machine. The standard engine is published at 1566 kW / 2100 hp gross and the optional one at 1417 kW / 1900 hp gross.
No, it runs a 190 mm stroke and about 69 L against 215 mm and 78.1 L in the truck engine.
Yes, and the condition is written into the quotation.
The engine serial number from the B8F plate, the truck model and serial, and photographs of the plate.
