Place of Origin:
China
Brand Name:
CAT
Model Number:
3046

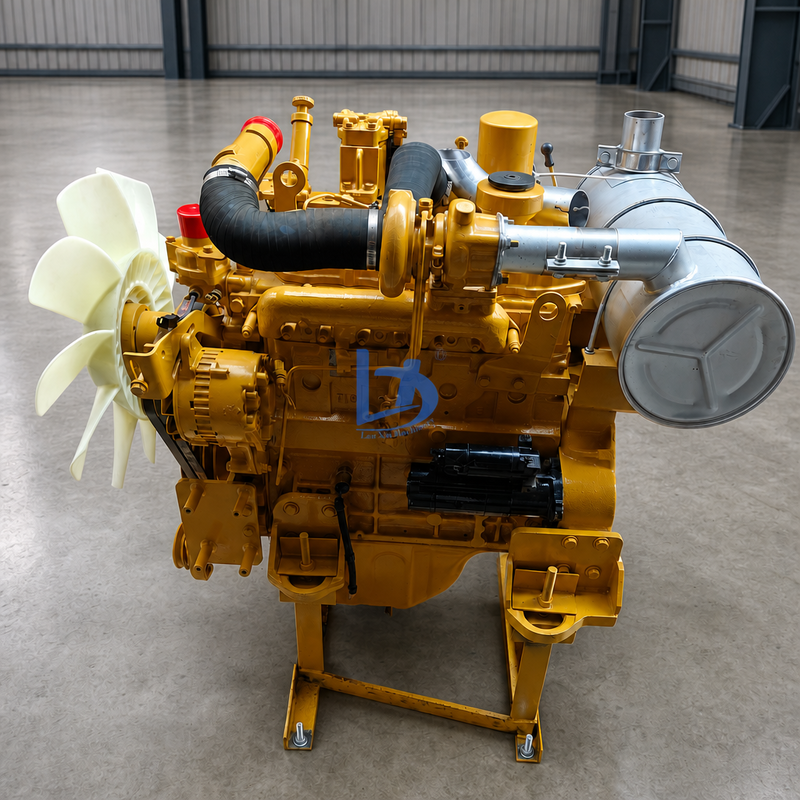

Complete six cylinder assembly for the 3046T engine used in the CAT 315B and 315BL excavator. The published build is turbocharged and direct injected, 94 mm by 120 mm, 4.996 litres, 102 hp gross and 99 hp net at 2100 rpm, on a 5XK serial prefix with the S6SDT build code. Rebuild kits and oil pumps carry a second maker name on the same line, so 3046 and S6S describe one engine. Complete units are listed against 131-8979 and 149-4608.
| Product Name | Complete Engine Assembly |
|---|---|
| Series | 3000 series, six cylinder range |
| Configuration | Six cylinder in line, four stroke, water cooled, turbocharged, direct injection |
| Displacement | 4.996 L, 305 cu in, 4997 cc as calculated from the bore and stroke |
| Bore and Stroke | 94 mm by 120 mm |
| Output | 102 hp gross and 99 hp net at 2100 rpm on the 3046T build tied to this machine |
| Plate Identifiers | Engine serial prefix 5XK; build code S6SDT |
| Applications | 315B and 315BL excavator; also 315, 315L, 318B, the D5C and 939C dozers and the 416C, 416D, 420D and 426C backhoe loaders |
| Second Designation | The same unit is quoted for Mitsubishi under S6S, S6SDT and S6S-DT |
| Condition | New, rebuilt and remanufactured assemblies are all traded |
| Packaging | Steel skid, ports capped, moisture barrier, export crate |
| Category | Replaceable Part Numbers & Compatible Models |
|---|---|
| Complete Unit Numbers | 131-8979; 149-4608, both listed against the 315B and 315BL |
| Common Number Forms | 3046; 3046T; 3046-T; 3046C-T; 3046E; S6S; S6SDT; S6S-DT |
| Pistons | 107-0984, standard bore, one published build; 128-3295, the other published build |
| Cylinder Head Gasket | 107-0979 |
| Main Bearing Set | 107-0991, standard |
| Fuel Injector | 128-3293, sold as a set of six and quoted for CAT 315, 315B, D5G, D5C III and 939C machines on this engine |
| Turbocharger | 116-6709, listed against the 315BL and 315B |
| Cooling And Lubrication | Radiator 131-8973 and oil cooler 135-5770 for the same machines; oil pump 32B35-00011 and 32B35-20010 listed for Mitsubishi under S6S |
Cylinder head; head gasket 107-0979; piston and ring set; liner; crankshaft; connecting rods; bearings; injector 128-3293; injection pump; turbocharger 116-6709; oil pump 32B35-00011; water pump; overhaul rebuild kit; starter; alternator.
Yes. Both machines were built with this engine, and the serial prefix and build code from the plate are what the order is matched against.
Two builds sit inside the 5XK range and they do not share pistons: one record ties 107-0984 to the engine and a second ties 128-3295 to it, so the serial decides.
Rebuild kits and oil pumps carry both names on one line, with 32B35-00011 and 32B35-20010 listed for Mitsubishi under S6S. The S6S family covers a wide output range, so the build is still fixed before dispatch.
All three conditions are traded and the condition is written into the quotation.
No, it is a 4.0 litre unit of 100 mm by 127 mm bore and stroke.
The engine serial number, the machine model with its serial, and a photo of the plate.
