Place of Origin:
China
Brand Name:
Mitsubishi
Model Number:
S4Q

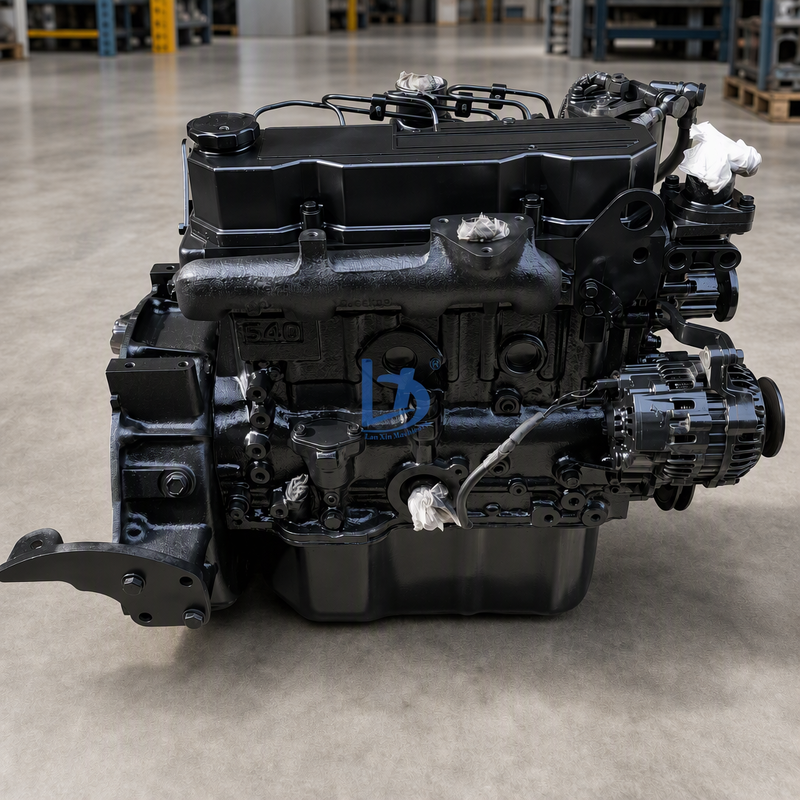

This is a complete four cylinder diesel engine assembly for the Mitsubishi S4Q and S4Q2 series, quoted through assembly numbers 32C93-45300 and 32C89-08100. Published data gives the S4Q2 as an inline four at 88 mm bore by 103 mm stroke, 2.5 L displacement and 2500 rpm, with the cylinder head listed as indirect injection. The family is fitted to forklift trucks, construction machines and compact tractors, so the application decides the build.
| Item | Specification |
|---|---|
| Product Name | Complete Engine Assembly |
| Engine Designation | S4Q; S4Q2; also written S4Q-2, S4QT and S4Q2-T |
| Assembly Numbers | 32C93-45300; 32C9345300; 32C89-08100 |
| Configuration | Inline four cylinder, water cooled diesel |
| Displacement | 2.5 L |
| Bore and Stroke | 88 mm by 103 mm |
| Rated Speed | 2500 rpm on the published data |
| Rated Output | 30 kW and 28 kW at 2500 rpm on forklift specification sheets; 32.7 kW, 44.5 hp, quoted for the construction machine build |
| Injection | Cylinder head 32C01-01040 is listed as the indirect injection head for S4Q and S4Q2 |
| Weight | About 320 kg for the bare engine |
| Applications | Forklift trucks in the 1.5 to 3.5 tonne class including the DP15N chassis; construction machines; compact tractors |
| Condition | New, rebuilt and used assemblies are all traded under this series |
| Packaging | Steel skid, ports capped, moisture barrier, export crate |
| Category | Replaceable Part Numbers & Compatible Models |
|---|---|
| Engine Designations | S4Q; S4Q2; S4Q-2; S4QT; S4Q2-T; S4Q2-52FL |
| Assembly Numbers | 32C93-45300; 32C9345300; 32C89-08100 |
| Cylinder Head and Valve | 32C01-01040 indirect injection head; 32C04-01100 exhaust valve; 32B01-01010; 32C01-01090; 32C01-11040; 31A01-33300; 32A01-01020; 32A01-01010 |
| Piston, Pump and Glow Plug | 32C17-00100 piston; MD972309 oil pump assembly; 32A66-03102 glow plug; 91A24-21500 clutch piston; 05910-10039 |
| Parts Manual Number | 98715-55100t, the S4Q2 N series parts list |
| Compatible Machines | Forklift trucks in the 1.5 to 3.5 tonne class including the DP15N chassis; construction machines; compact tractors; quoted for Terex equipment |
S4Q, S4Q2, S4Q-2, S4QT and S4Q2-T all appear as build names, and S3Q and S3Q2 are the three cylinder versions. One listing carries eight designations on a single line, naming S4Q2, S4S, 4M50, 4D36, 4D33, 4M42, 4AT2 and S3Q2, repeated word for word by a second supplier at an identical price.
Figures include 28 kW and 30 kW at 2500 rpm on forklift sheets, 32.7 kW or 44.5 hp for the construction machine build, and market listings quoting 34.6 kW at 2400 rpm and 37 kW at 1600 rpm. The rating belongs to the build and has to be fixed before the quotation.
The engine appears in forklift specification sheets for the 1.5 to 3.5 tonne trucks, is sold as a construction machine engine, and the indirect injection head is listed for compact tractors. The machine it comes out of decides the build.
The glow plug 32A66-03102 is listed for S4L, S4L2, S4Q-2, S4S, S4Q2 and the K4N and K4A to K4F engines in one line. A shared small part does not make the complete engines interchangeable.
Complete assemblies here are advertised mostly between about USD 1,450 and 5,400, with figures near 490 that cannot describe a complete engine and a pair of listings near 9,000. Prices are quoted per piece, per set and per bag.
Petrol car engines such as the 4A15, 4A92, 4G15S, 4G18, 4G63T, 4G64, 4B12, 6B31 and 6G73 appear in the same search, as does the 4D56T. They are unrelated, and the capacity has to be checked against the 2.5 L industrial unit.
Cylinder head 32C01-01040 and gasket; exhaust valve 32C04-01100; piston 32C17-00100 and ring set; cylinder liner; crankshaft and bearing set; overhaul gasket kit; injection pump and injector; oil pump MD972309; water pump and thermostat; glow plug 32A66-03102; starter motor and alternator.
A complete four cylinder diesel engine assembly for Mitsubishi S4Q and S4Q2, quoted as 32C93-45300 with 32C89-08100 as the forklift assembly number.
2.5 L, inline four, 88 mm bore by 103 mm stroke, 2500 rpm, and about 320 kg for the bare engine.
Forklifts in the 1.5 to 3.5 tonne class, construction machines and compact tractors.
No, it is the three cylinder version.
The rating of the build the machine uses.
The engine number from the plate and the machine model and serial.
