Place of Origin:
China
Brand Name:
Deutz
Model Number:
BF4M2012

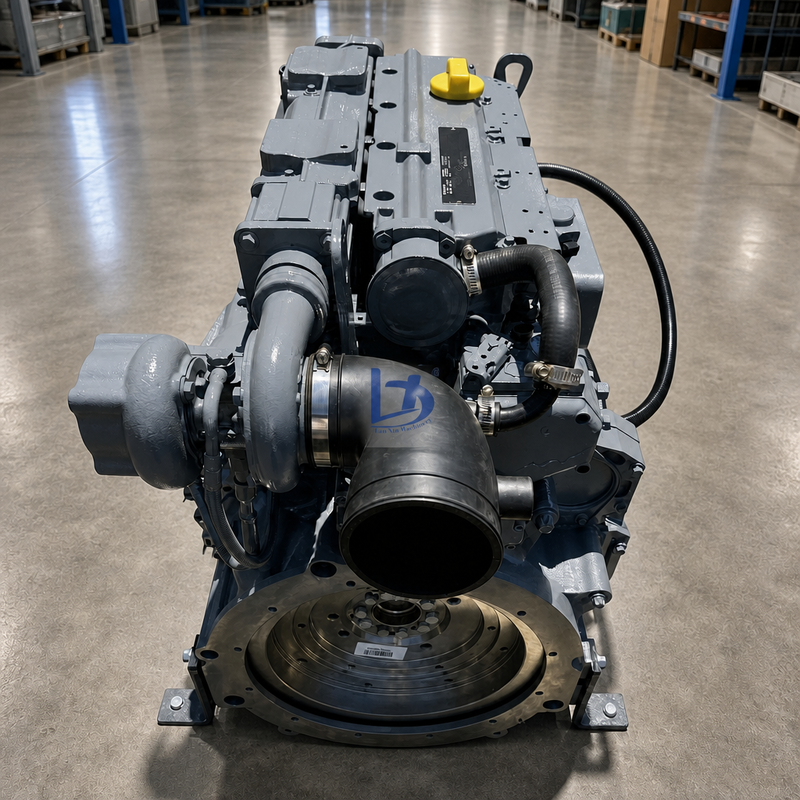

New complete four cylinder engine assembly for the Deutz 2012 series, designated BF4M2012C and also written as BF4M2012, BF 4M 2012 C and BF4M 2012 C. This water cooled, direct injection, turbocharged unit displaces 4.04 L with a 101 mm bore by 126 mm stroke. Assembly numbers 00933199 and 10734394 appear on this series. The engine is used in excavators, loaders, rollers and generator sets.
| Item | Specification |
|---|---|
| Product Name | Complete Engine Assembly |
| Engine Designation | BF4M2012C; also written BF4M2012, BF 4M 2012 C and BF4M 2012 C |
| Assembly Numbers | 00933199; 10734394 |
| Variant Suffixes | BF4M2012-13T2; BF4M2012-14E3; BF4M2012-16E4 |
| Code Meaning | B turbocharged, F four stroke, 4 four cylinders, M water cooled, 2012 series, C variant |
| Configuration | Four cylinders in line, water cooled, direct injection, turbocharged |
| Displacement | 4.04 L |
| Bore and Stroke | 101 mm by 126 mm |
| Rated Output Quoted | 74.9 kW at 2200 rpm, 90 kW, 93 kW at 2300 rpm and 103 kW at 2500 rpm |
| Series Range | 74.9 to 155 kW, 100 to 208 hp at 2500 rpm, across four and six cylinder builds |
| Emission Level | EU Stage II and US EPA Tier 2 published for the base series; Euro 3 quoted for one variant |
| Fitment | Excavator; loader; roller; generator set; and quoted for Vo-lvo and other carriers |
| Condition | New, remanufactured, used, bare engine and block are all traded |
| Packaging | Steel skid, ports capped, moisture barrier, export crate |
| Category | Replaceable Part Numbers & Compatible Models |
|---|---|
| Engine Designations | BF4M2012; BF4M2012C; BF 4M 2012 C |
| Assembly Numbers | 00933199; 10734394 |
| Build Suffixes | BF4M2012-13T2; BF4M2012-14E3; BF4M2012-16E4 |
| Block and Bare Engine | BF4M2012-13T2-1041 |
| Component Numbers | 04258199 turbocharger; 04252677 piston ring; 04252397 oil cooler gasket; 04253472 oil pump |
| Neighbouring Series | BF4M1012; BF4M1013; BF4M1013EC; BF4M1013FC; BF4M2011; BF6M2012; BF6M2012C; BF6M1013; BF6L913; F4M1011F; TCD2012 L04 2V; TCD2013L04; TCD2013L06 |
| Compatible Machines | Excavators, loaders, wheel loaders, rollers and generator sets; also quoted for Vo-lvo EC140B, EC160B and EC210B, and for Atlas equipment |
In the model code M stands for water cooled and L for air cooled. Two listings nevertheless call this engine air cooled in the headline, so the cooling type should be taken from the engine plate rather than a title.
The 1012, 1013, 2011, 2012 and 2013 labels sit next to each other in the same search and the same titles. Two listings pair BF4M1013FC with BF4M2012C in one headline at an identical price, repeated by a second supplier. The series number on the engine plate decides, not the advert.
Listings for the same four cylinder base quote 74.9 kW at 2200 rpm, 90 kW, 93 kW at 2300 rpm and 103 kW at 2500 rpm, while the published series spans 74.9 to 155 kW. The rating has to be agreed against the suffix, not taken from the highest figure on the page.
The same search covers a complete engine, a bare engine without the fuel system and a bare block, and one title carries both wordings. What is included must be stated per quotation.
Most four cylinder engines here are advertised between about USD 2,100 and 6,000, with a small group above 27,000 that does not match a four cylinder unit. Ask for one price per engine for the stated condition.
Some titles name carriers from other makers, D4D and EC140B designations, Chinese loader models and a generator set on the same line. A build should be confirmed from the machine serial, as a generator set rating differs from a mobile rating.
Turbocharger 04258199; piston and piston ring 04252677; cylinder head and gasket; crankshaft and bearing set; overhaul gasket kit; fuel injection pump and injector; oil cooler and gasket 04252397; oil pump 04253472; water pump and thermostat; starter motor and alternator.
A complete four cylinder engine assembly for Deutz 2012 series, quoted as BF4M2012C with 00933199 and 10734394 as assembly numbers.
4.04 L, four cylinders in line, water cooled, direct injection and turbocharged, 101 mm bore by 126 mm stroke.
Water cooled, as the M in the code indicates.
No, it is a different series.
The rating of the build suffix on the engine plate.
The engine plate number and suffix, and the machine model and serial.
