Place of Origin:
China
Brand Name:
Isuzu
Model Number:
6RB1

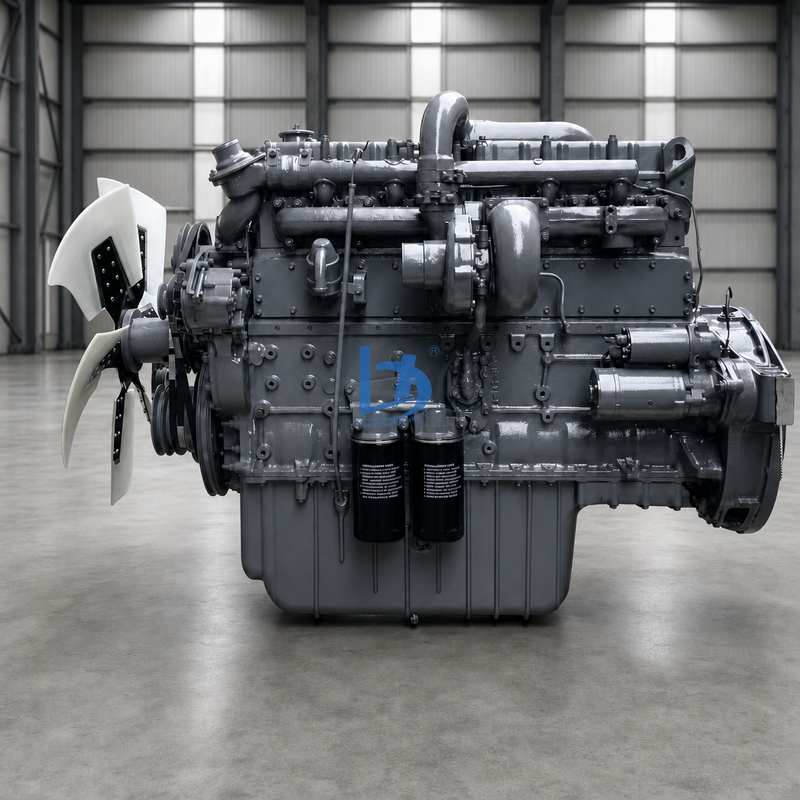

A complete six cylinder engine assembly for the Isuzu 6RB1 diesel engine, quoted as 6RB1TQA and 6RB1TQA-01. The published service specification for the Hitachi EX400-5 gives the engine as an A-6RB1TQA of 838 cubic inch or 13.7 L, turbocharged, rated 301 hp or 224.5 kW at 2000 rpm with 1230 Nm at 1400 rpm, in a machine of 41,900 kg. A parts catalogue for the designation lists a six cylinder with a 135 mm liner, so the two sets of figures should be read together before a build is quoted.
| Product Name | Complete Engine Assembly |
|---|---|
| Engine Designation | 6RB1; 6RB1T; 6RB1-T; 6RB1TC; 6RA1 |
| Production and Build Codes | A-6RB1TQA; 6RB1TQA-01; 6RB1TPF-03; 6RB1TPP-03 |
| Configuration | Six cylinder in line, four cycle, water cooled, OHV |
| Displacement | 13.7 L, 838 cubic inch, as published for the EX400-5 |
| Bore | 135 mm, taken from the liner size in the parts catalogue |
| Aspiration | Turbocharged |
| Rated Output | 224.5 kW or 301 hp at 2000 rpm, quoted as 224 kW or 305 PS on the machine brochure |
| Maximum Torque | 1230 Nm or 907 lb ft at 1400 rpm |
| Machine Weight Class | 41,900 kg on the EX400-5 |
| Applications | Excavator; crane; quoted for loader and truck use |
| Condition | New, remanufactured and used assemblies are all traded |
| Packaging | Steel skid, ports capped, moisture barrier, export crate |
| Engine Designation | 6RB1; 6RB1T; 6RB1-T; 6RB1TC; 6RA1 |
|---|---|
| Production and Build Codes | A-6RB1TQA; 6RB1TQA-01; 6RB1TPF-03; 6RB1TPP-03 |
| Gasket Sets | 1-87810-247-1; 1-87810-247-4; 1-11141-115-0; 1-11141-684-0; 1-11141-684-1; head gasket 1-11141142-0 |
| Piston and Liner | Liner 1-11261-204-0 and 1-11261-208-0; piston 1-12111873-0; piston ring 1-12121-037 and 1-12121-040 |
| Bearings and Bushes | Main bearing 1-11510-073 and 1-11510-060; con rod bearing 1-12271-048 and 1-12271-028; cam bearing 1-11611-008-0, 1-11616-023-0, 1-11617-015-0, 1-11618-016-0, 1-11619-052-0, 1-11619-055-0, 1-11619-080-0; thrust washer 9-11515-216; pin bushing 9-12251-088; valve guide 1-11721-001 |
| Electrical and Turbo | Starter 1-81100-217-1 and 1811002171 and 0-23000-6091; further starter references for Hitachi S210-108, S210-108A, 1811000440, 1811000960, 1811000961, 1811001270, 1811001770, 1811001800, 1811001801, 1811002521, 1811002740, 1811002741, 0230006040, 0230006090, 0230007040, 0230007041; alternator 1-81200563-0 and 1812005630 at 24V 50A; turbocharger TA5136 479034-5001S and TA5131 466569-0001, 114400-3400, 1144003171, 1-14400-3171 |
| Compatible Machines | for Hitachi EX400, EX400-1, EX400H-1, EX400-2, EX400-3, EX400LC-3, EX400H-3, EX400-5, EX400LC-5, EX450-5 and EX350; and for Hitachi CX1000 and CX1100 cranes |
Cylinder head and head gasket 1-11141142-0; liner kit; piston and ring set; crankshaft and bearing set; full gasket set; oil pump; water pump and thermostat; turbocharger TA5136; starter motor; alternator; flywheel housing; engine mounting.
A complete six cylinder engine assembly for Isuzu 6RB1, quoted as 6RB1TQA and 6RB1TQA-01.
13.7 L, six cylinders, 135 mm liner, turbocharged, 224.5 kW at 2000 rpm and 1230 Nm at 1400 rpm.
Large excavators and the CX1000 and CX1100 cranes.
No, it is a smaller six cylinder engine.
They should be matched to the plate.
The engine plate code, the machine model and the machine serial.
6rb1 6rb1t 6rb1-t 6rb1tc 6rb1tqa 6rb1tqa-01 6rb1tpf-03 6rb1tpp-03 6ra1 6rb1 complete engine assembly 13.7l 838 cubic inch 12023cc 6 cylinder 135mm bore turbocharged 224.5kw 301hp 2000rpm 1230nm 1400rpm 1-87810-247-1 1-87810-247-4 1-11141-115-0 1-11141-684-0 1-11141-684-1 1-11261-204-0 1-11261-208-0 1-12111873-0 1-12121-037 1-12121-040 1-11141142-0 1-11510-073 1-11510-060 1-12271-048 1-12271-028 1-11721-001 9-11515-216 9-12251-088 1-81100-217-1 1811002171 0-23000-6091 1-81200563-0 1812005630 479034-5001s 466569-0001 114400-3400 1144003171 1-14400-3171 ta5136 ta5131 engine for isuzu 6rb1 for hitachi ex400 ex400-1 ex400-2 ex400-3 ex400-5 ex450-5 ex350 excavator cx1000 cx1100 crane replacement engine 6bd1 6bg1 6bg1t 6sd1 6sd1t 6hk1 6hk1t 6wg1 6uz1 6bf1 4bg1 4bg1t 4bd1 4jb1 4hk1 c240
