Place of Origin:
China
Brand Name:
Mitsubishi
Model Number:
S6S

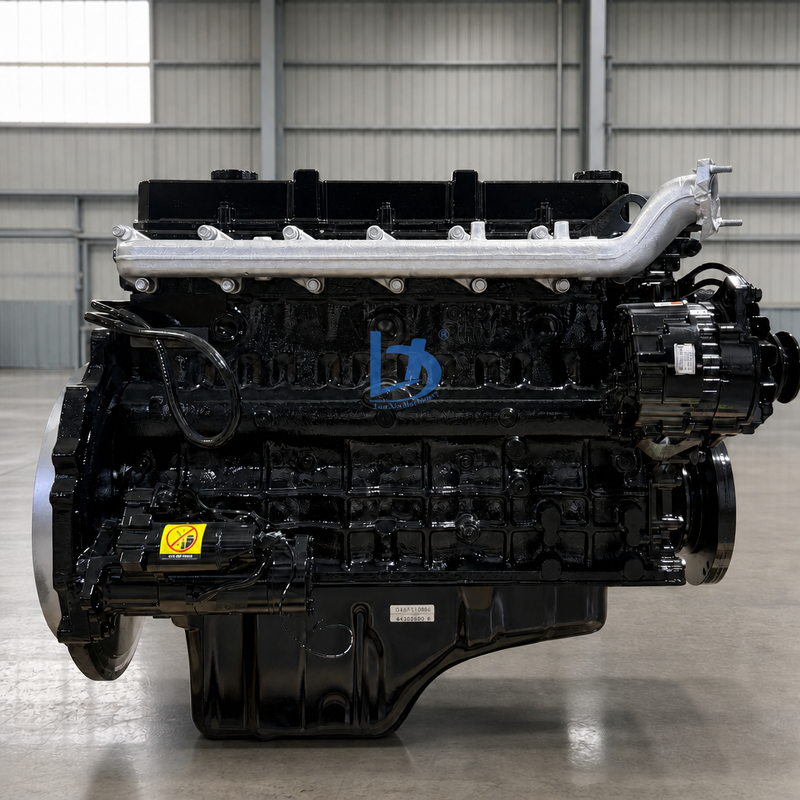

Complete six cylinder engine assembly for the S6S build of the Mitsubishi SS series. This 4.996 L water-cooled, four-stroke diesel engine is quoted through build codes including SDP-S6S-G3-1, STD-S6ST-PA1, ST-S6ST-G3-PA1, SPC-S6S-227 and SBF302. The dealer specification lists a 94 mm bore by 120 mm stroke, 45 to 88 kW output range and 345 kg dry weight. The parts catalogue covers forklift models FD35 to FD70 from serial 28620, and the same engine is also quoted for excavators, wheel loaders and generator sets.
| Item | Specification |
|---|---|
| Product Name | Complete Engine Assembly |
| Series | SS series, six cylinder |
| Configuration | Six cylinder in line, four stroke, water cooled diesel |
| Displacement | 4.996 L, 4997 cc as calculated from the bore and stroke |
| Bore and Stroke | 94 mm by 120 mm |
| Output Range | 45 to 88 kW across the builds in the dealer specification |
| Stated Ratings | 52 kW at 2300 rpm on the SDP-S6S-G3-1 build; 57.4 kW on one specification page; 63.9 kW at 2300 rpm on the STD-S6ST-PA1 build; 75 to 110 hp quoted for the range |
| Dry Weight | 345 kg |
| Dimensions | 1033 mm by 593 mm by 748 mm |
| Emissions | Non emission listed for the base build; Tier II training material is published for the S6S-DT build |
| Applications | Forklift truck; excavator; wheel loader; generator set; industrial plant |
| Condition | New, rebuilt and used assemblies are all traded |
| Packaging | Steel skid, ports capped, moisture barrier, export crate |
| Category | Replaceable Part Numbers & Compatible Models |
|---|---|
| Build Codes | SDP-S6S-G3-1; STD-S6ST-PA1; ST-S6ST-G3-PA1; SPC-S6S-227; S6S-SBF302 |
| Common Number Forms | S6S; S6S-DT; S6S-T; S6ST; S6SDT; S6S-D |
| Cylinder Head Numbers | 32B01-01011; 32B01-01010; ME192299 |
| Other Numbers Seen | 92047-05100 and 9204705100 brake booster; 32A89-60600 quoted for the four cylinder S4S |
| Compatible Machines | For Mitsubishi forklift models FD35, FD50, FD60 and FD70 from serial 28620 per the parts catalogue; also quoted for excavators, wheel loaders and generator sets |
The dealer specification covers 45 to 88 kW for the family, while single builds are stated as 52 kW at 2300 rpm, 57.4 kW and 63.9 kW at 2300 rpm. A quotation that names only S6S does not fix the output.
The dealer specification states 4.996 L on a 94 mm by 120 mm bore and stroke, which matches a calculated 4997 cc, while one summary page describes the same engine as 4.5 litres. The plate decides.
One entry carries this engine and a 3046T designation from another maker under a single qualifier, and a second entry joins this engine maker name to a different maker name in one phrase with 804D and 804D-33 model numbers. Each brand name needs its own qualifier when the two appear together.
One heading lists fourteen designations together, including L3E, S4E, S4F, S4L, S4S, S4K, K4E, K4N, S3L2, S4L2, S4Q2 and S6S, and another lists 6D16-T, 4D56, 6D16, S4K, S6K, S6S and S4S. These are different engines of different capacities.
The parts catalogue is issued for models FD35 to FD70 from serial 28620, so an earlier machine may take a different build of the same designation.
Complete units are advertised mostly between about USD 3,000 and 7,950, with figures near 1,000 at the bottom and single entries printed at 11,500 to 13,800. Units are quoted per piece, per set, per parcel, per pack, per three sets, per five pieces, per nine pieces and per ten pieces.
Two suppliers carry one identical heading at 1,700 to 1,800 per parcel, and a further pair carry an identical heading at 5,000. An identical heading does not show that the same build is held.
Cylinder head assembly 32B01-01011 and 32B01-01010 and ME192299; head gasket; piston and ring set; cylinder liner; crankshaft and connecting rods; bearing set; overhaul rebuild kit; water pump; oil pump; turbocharger for the S6S-DT build; fuel injection pump and injector; starter motor; alternator; brake booster 92047-05100; engine mounting.
A complete six cylinder engine assembly for the S6S build of the SS series.
4.996 L, six cylinders, 94 mm bore by 120 mm stroke, 345 kg dry, 45 to 88 kW by build.
Forklifts, excavators, wheel loaders and generator sets.
Yes, the S6S-DT and S6ST builds are turbocharged.
No, it is the four cylinder version.
The build code from the plate and the machine model and serial.
