Place of Origin:
China
Brand Name:
Kubota
Model Number:
V2403
v2403 v2403t v2403-t v2403-m v2403-m-di v2403-m-di-t v2403-m-e3b v2403-m-di-e3b v2403-m-di-t-e3b v2403-m-di-e2b v2403-m-di-bg v2403-m-eu35 v2403-m-di-t-et05 v2403-m-di-cto2 v2403bm-di-ct04 v2403-cr v2403-cr-t v2403-cr-ti v2403-cr-e4b v2403-cr-t-e4b v2403-cr-ti-e4b v2403-cr-te5b 2.434l 2434cc 148.5ci 87mm bore 102.4mm stroke four cylinder 03-m series 36kw 44kw 48.6kw 165.1nm 201kg 1j403-00004 1j477-53000 1g780-03043 1j860-03040 16419-53900 16419-53905 49131-02090 td03 complete engine assembly diesel engine for kubota excavator skid steer loader replacement engine c2.4 v2203

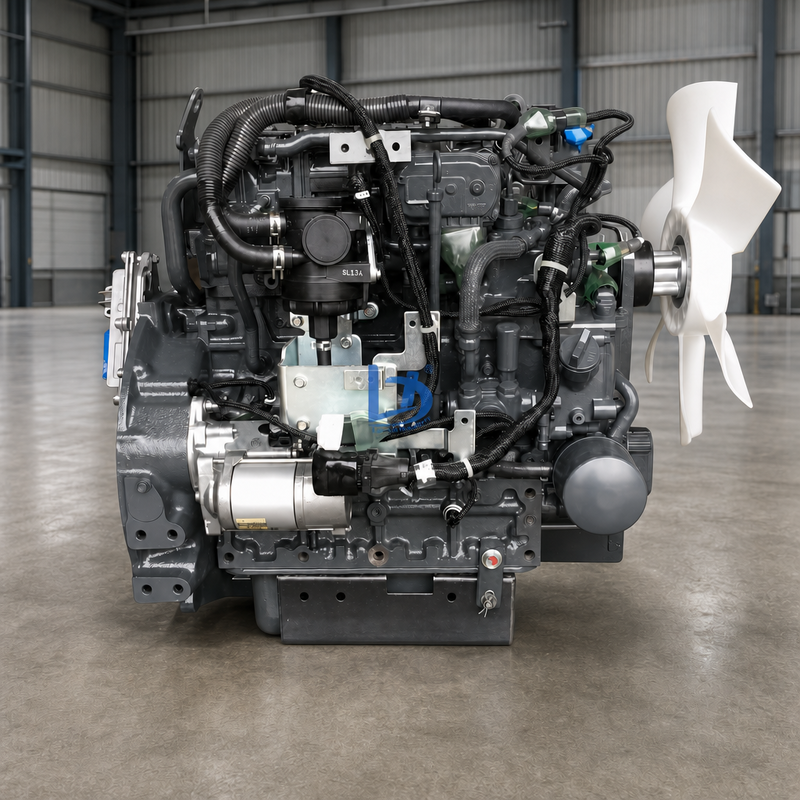

Complete four cylinder assembly from the 03-M series, published at 87.0 mm by 102.4 mm and 2.434 litres. The family runs from 48.9 to 65.2 hp across mechanical and common rail builds, with the turbocharged industrial version listed at 44 kW and 165.1 Nm at a dry weight of 201 kg. Assembly 1J403-00004 is quoted for the complete unit.
| Item | Specification |
|---|---|
| Product Name | Complete Engine Assembly |
| Series | 03-M series, four cylinder industrial range |
| Configuration | Vertical, water cooled, four stroke, four cylinder diesel |
| Displacement | 2.434 L, 148.5 cu in |
| Bore and Stroke | 87.0 mm by 102.4 mm |
| Fuel System | Mechanical direct injection on the M builds, common rail on the CR builds |
| Air System | Naturally aspirated, turbocharged, or turbocharged charge air cooled by build |
| Output | 44 kW at 2700 rpm on the turbocharged industrial build, 36 kW at 2600 to 2700 rpm on others and 48.6 kW on the CR-T-E4B |
| Maximum Torque | 165.1 Nm on the turbocharged industrial build |
| Dry Weight | 201 kg |
| Emissions | EPA interim Tier 4 with EU Stage IIIA on the E3B builds, later stages on the TE4B and TE5B builds |
| Applications | Quoted for Kubota in compact excavators and wheel loaders, for in the T140 skid steer, and for generator drive |
| Condition | New, rebuilt and used units are all traded |
| Category | Replaceable Part Numbers & Compatible Models |
|---|---|
| Assembly Number | 1J403-00004, quoted for the complete unit and carried with 1J477-53000 in the same listing |
| Cylinder Head | 1G780-03043 and 1J860-03040, bare head listed for this engine and its direct injection and turbocharged builds |
| Injector | 16419-53900 and 16419-53905, listed across the 2.2 and 2.4 litre members of the range |
| Turbocharger | TD03, 49131-02090, listed for the turbocharged build |
| Crankshaft Main Journal | 60 mm outside diameter, per one parts supplier |
| Build Codes | V2403-M, M-DI, M-DI-T, M-E3B, M-DI-E3B, M-DI-T-E3B, M-DI-E2B, M-DI-BG, M-EU35, M-DI-T-ET05, M-DI-CTO2 and BM-DI-CT04; CR, CR-T, CR-TI, CR-E4B, CR-T-E4B, CR-TI-E4B and CR-TE5B |
| Caution - One Name, Two Fuel Systems | The mechanical and common rail builds do not share pumps, injectors or control hardware, so the plate code decides what can be supplied |
| Caution - A Second Badge On The Same Engine | One engine guide states the family is also sold for under the C2.4 designation, so a search by machine model can return the other badge |
| Caution - Ratings From 33.6 To 48.6 kW | 33.6 kW at 2400 rpm, 36 kW at 2600 to 2700 rpm and 44 kW at 2700 rpm all appear on this engine, with 48.6 kW on the common rail turbo build; one capacity carries all of them |
| Caution - A Smaller Relative With Shared Numbers | The 2.2 litre member uses the same bore on a shorter stroke and shares the injector numbers above, so capacity and injector number together still do not identify the engine |
| Caution - Wide And Uneven Price Spread | Units sit mostly between 800 and 5500 per piece, used from 350 to 1280, new around 3290 to 5500, with one heading quoting 2700 to 5500 for two pieces |
| Related Components | Cylinder head 1G780-03043; injector 16419-53900; turbocharger 49131-02090; piston and ring set; liner kit; crankshaft; main and rod bearings; injection pump; water pump; oil pump; overhaul gasket kit |
Two families share the block: mechanical direct injection versions marked M, M-DI and M-DI-T with their emission and OEM suffixes, and common rail versions marked CR, CR-T and CR-TI. Suffix and stage together fix what is inside.
It can. One engine guide states the family is also sold for under the C2.4 designation, so a buyer searching by machine model can be quoted the same unit under a different badge.
Heads are listed as 1G780-03043 and 1J860-03040, injectors as 16419-53900 and 16419-53905, and the turbocharger as TD03 with number 49131-02090, so they identify the range rather than the exact build.
